User Manual for FSR 25 Watt Mono 70 Volt Amplifier Click to enlarge the picture
Contents of the user manual for the FSR 25 Watt Mono 70 Volt
- Product category: 70-Volt Amplifiers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR 70-Volt Amplifiers
|
User manual for the FSR 25 Watt Mono 70 Volt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

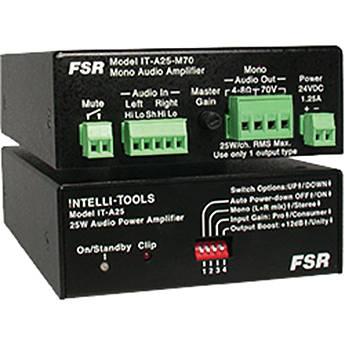

Product description The IT-A25-M70 25 Watt Mono 70 Volt Amplifier from FSR delivers a 25 Watt RMS mono output at either 4 or 8 ohms or can drive a 70 Volt line output at 25 Watts RMS. The amp supports pro and consumer audio input levels.
The IT-A25-M70 features a small size and modest amplifier output that's ideal for small venue audio power applications. The unit includes surface mounting brackets and self adhesive rubber feet and hardware. An optional rack mounting kit is also available as an additional purchase.
The amplifier is designed for use in boardrooms, classrooms, houses of worship, staging and rental, control rooms, libraries as well as other venues where a compact and low power amplifier are required. - Supports pro and consumer audio input levels
- Low wattage and small size designed for small venue power applications
- Mono 25 Watts RMS output @ 4 or 8 Ω or 70 Volt line output @ 25 Watts RMS
- Signal Sense trigger for sleep and wakeup
- Music and alarm muting capability
- Includes external power supply
In the Box FSR 25 Watt Mono 70 Volt Amplifier External Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR 25 Watt Mono 70 Volt Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR IT-A25-M70 Specs | | | LED Indicators | Power On
Standby
Clip | | Operating Temperature | 32 to 104° (0 to 40° C) | | Cooling Design | Convection | | Enclosure Material | Metal | | Turn-On Time from Auto Power Down | 25 ms (Typical) | | Time to Enter Mute State | <1 ms | | Time to Exit Mute State | 30 ms | | Amplifier Class | D | | Dimensions (W x H x D) | 4.22 x 1.59 x 6.81" (10.72 x 4.04 x 17.30 cm) | | Weight | 3.4 lb (1.54 kg) | | | | Number of Inputs | 1 , Stereo balanced | | Connector | 5 position pluggable screw terminal | | Maximum Analog Input Level | 7 Vrms, +16.9 dBV balanced/unbalanced | | Input Impedance | 20 k Ω balanced/unbalanced | | Input Signal Detection Threshold | 10 mVrms, -40 dBv (for Auto Power Down) | | | | Connector | 2 position pluggable screw terminal | | Power Output | 25 Watts / RMS @ 70 Volt or 25 Watts /RMS @ 4 to 8 Ω | | Signal Output | Mono | | Load Impedance | 4 to 8 Ω or 70 Volt | | THD + Noise | 0.1 % @ 10 kHz, 10 Watt / 70 Volt Output | | Frequency Response | 100 Hz to 20 kHz, +0 , -1 dB , -3 dB @ 50 Hz | | Signal to Noise Ratio | >97dB @ 70V, 100Hz to 20 kHz, un-weighted | | | | Control Switch | Master Gain Control
Auto Power Down
Stereo / Mono (L+R sum)
Pro / Consumer (+12 dB)
Unity / +12 dB Gain | | Remote Muting Input | Dry contact closure required | | | | External Power Supply | 100 to 240 VAC | | Power Input Requirement | 24V DC @ 1.2 Amps | | Power Consumption (max power) | ≤ 28W | | Standby Power | ≤ 1 Watt | | Idle Power | ≤ 3.5 Watt | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 13.7 x 6.1 x 4.8" |
