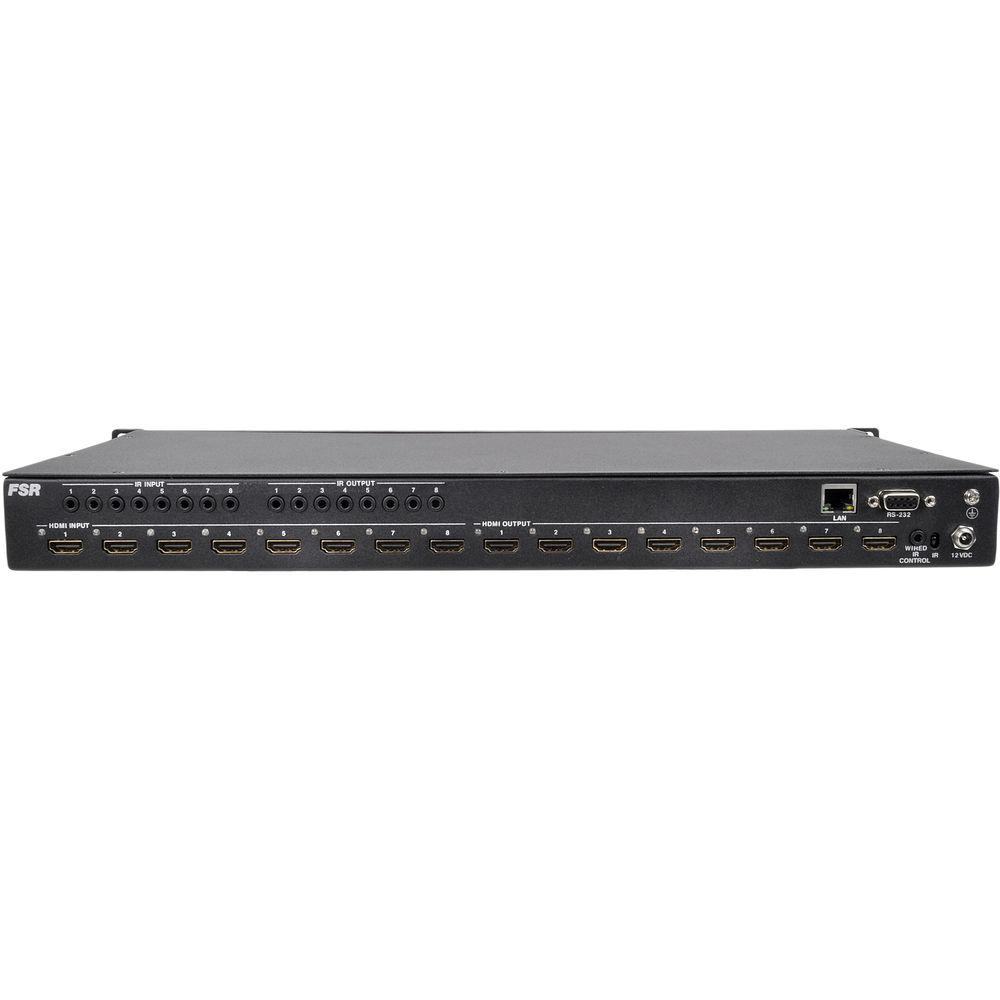

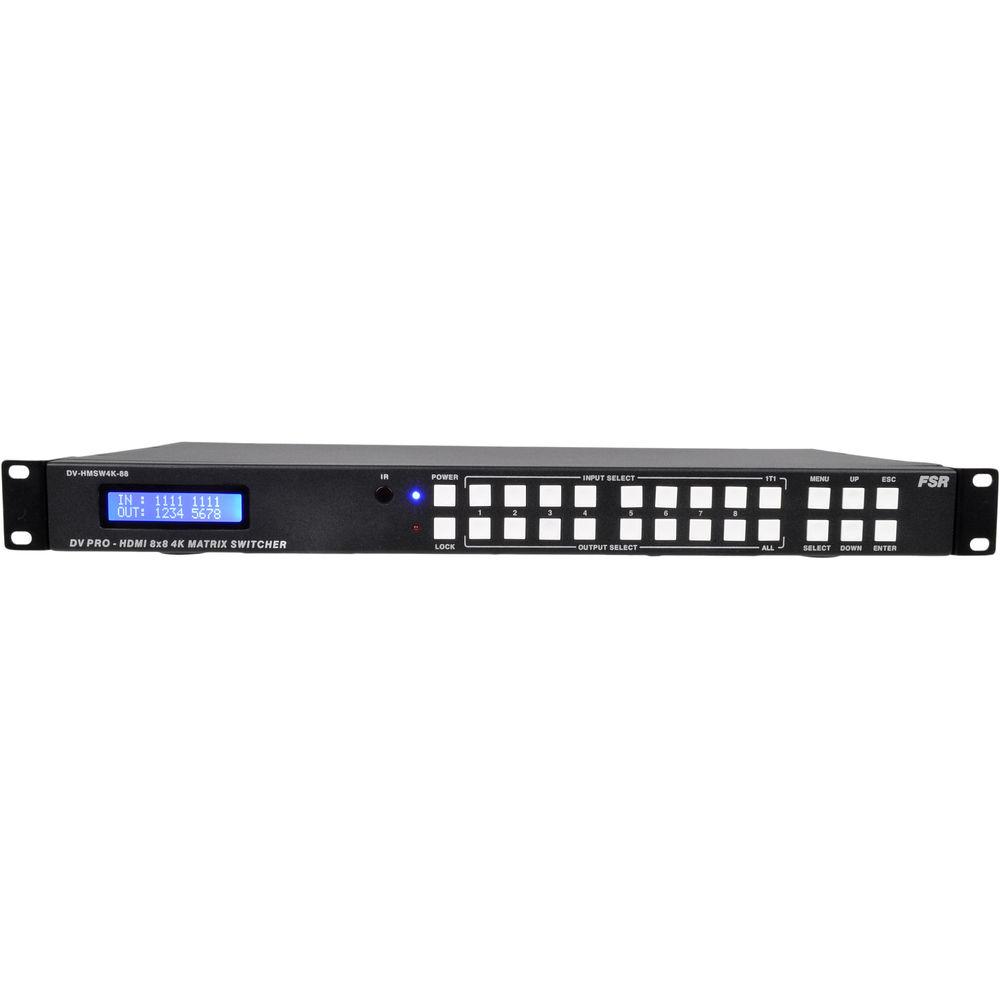

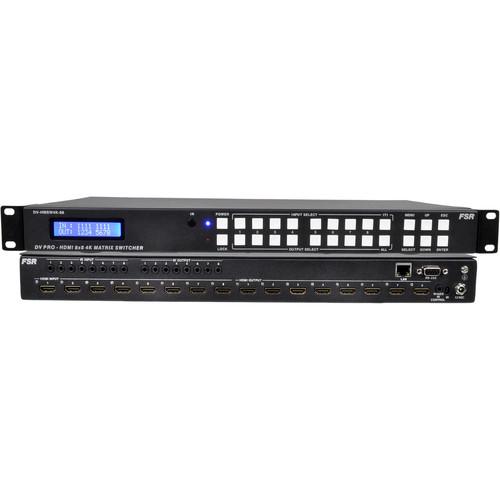

User Manual for FSR 8x8 HDMI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the FSR 8x8 HDMI Matrix Switcher
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
 |
User manual for the FSR 8x8 HDMI Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The FSR 8x8 HDMI Matrix Switcher allows you to switch between eight HDMI sources and route one or more in various configurations among eight outputs. It supports HDTV resolutions up to 1080p @ 60Hz with 36-bit color depth, VESA resolutions up to 2048 x 1080 @ 60Hz, and up to Dolby True HD and DTS-HD audio. You can send one input to up to all eight outputs, or designate multiple inputs each to a select output.
Selections can be made via the front panel, included remote control, RS-232C, or LAN (TCP/IP). The switcher offers a complete set of EDID management tools for each input and output and features up to 128 HDCP keys ensuring compatibility with every HDCP compliant device. - Key Features
-
- Supports resolutions up to 1080p @ 60Hz / VESA up to 2048 x 1080 @ 60Hz
- Up to 36-bit color depth
- Up to Dolby True HD and DTS-HD audio.
- Front panel, remote control, RS-232C, and LAN (TCP/IP) control
- EDID management for each input and output
- 128 HDCP keys
In the Box FSR 8x8 HDMI Matrix Switcher IR Remote Control Power Supply 60-Day Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR 8x8 HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DV-HMSW-88 Specs | Input | 8x HDMI 1.3 type A female | | Output | 8x HDMI 1.3 type A female | | Supported Resolutions | Up to 1080p @ 60 Hz; VESA resolutions up to 2048 x 1080 @ 60Hz | | Supported Color Depth | Up to 36-bit | | Supported Audio | Up to Dolby True HD and DTS-HD | | HDCP Compliance | HDCP 2.1 | | Power Consumption | 30 W | | Dimensions | 17.7 x 7.9 x 2.4" (45 x 20 x 6 cm) | | Weight | 8.8 lb (4 kg) |
