User Manual for FSR CB-22 2 x 2' Ceiling Box with 6 AC Outlets Click to enlarge the picture
Contents of the user manual for the FSR CB-22 2 x 2' Ceiling
- Product category: Wall Plates & Installation Boxes FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Wall Plates & Installation Boxes
 |
User manual for the FSR CB-22 2 x 2' Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

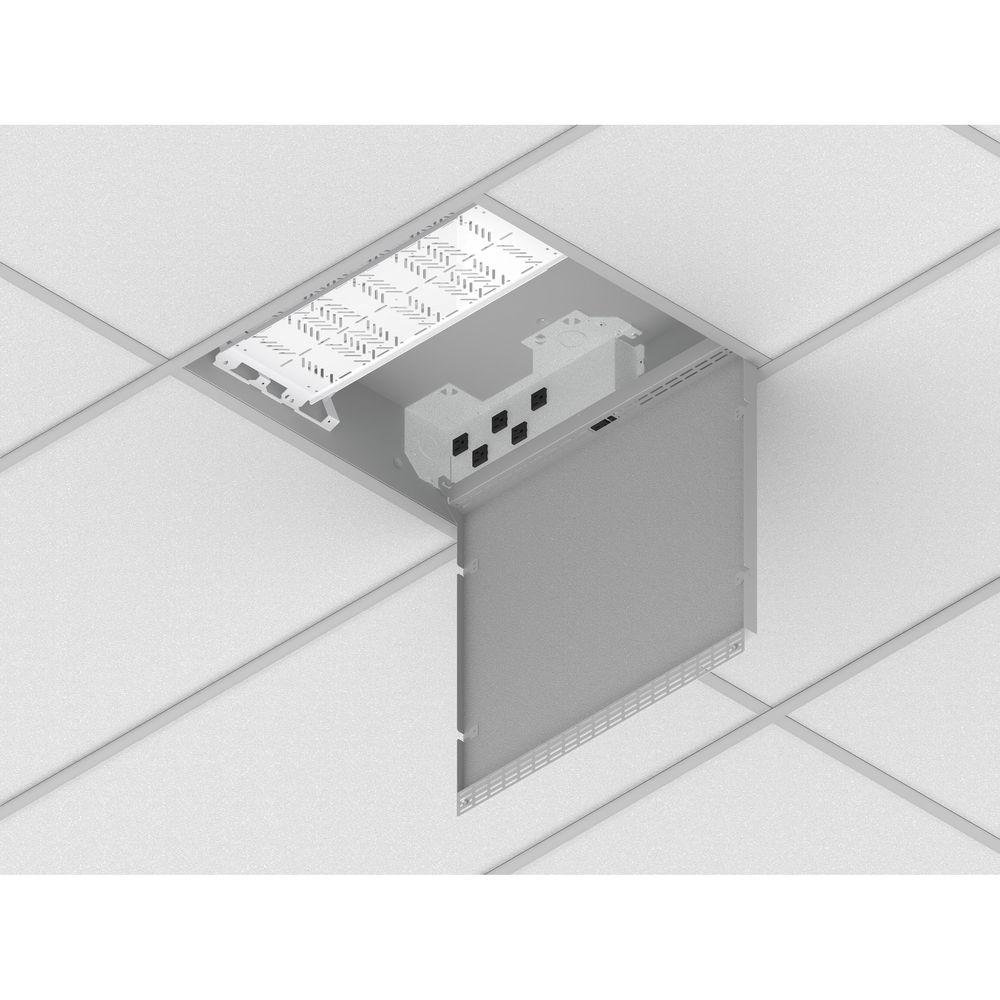

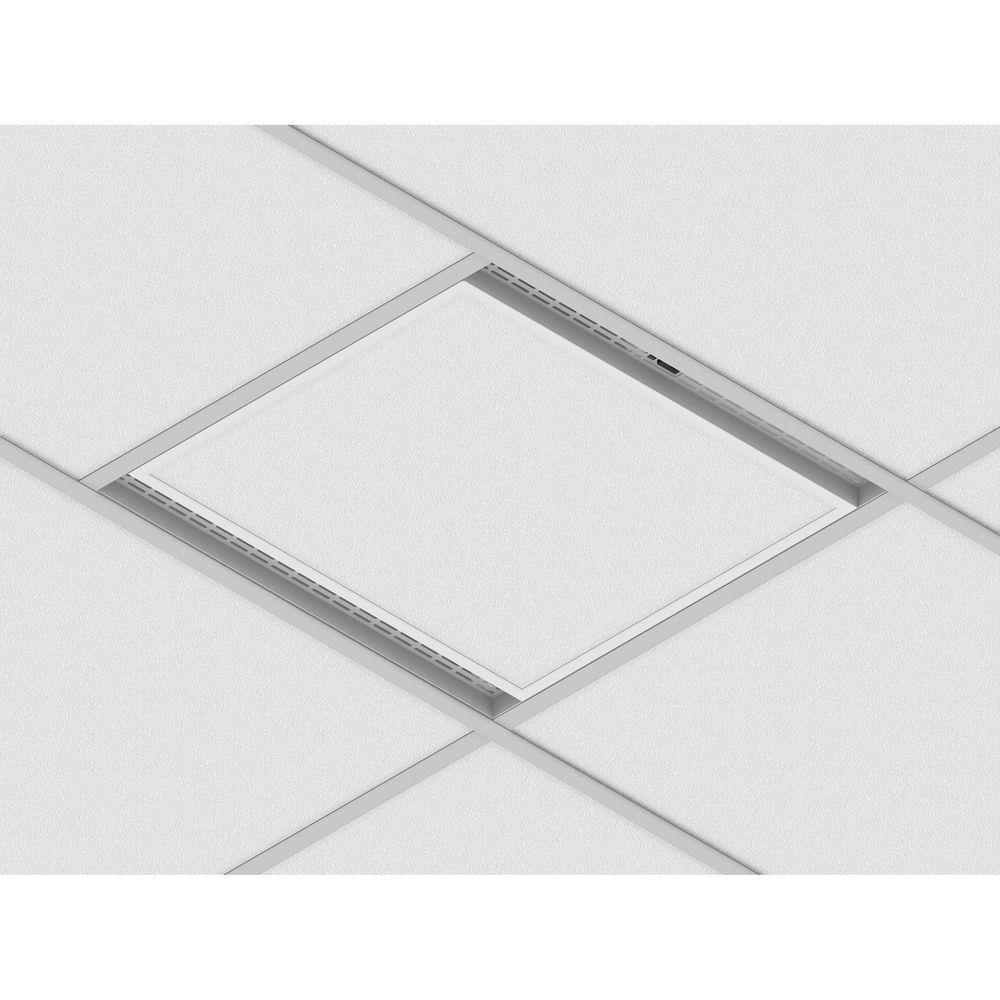

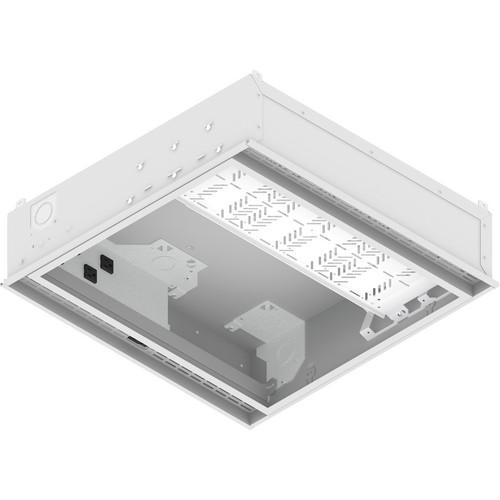

Product description The FSR CB-22 2 x 2’ Ceiling Box with 6 AC Outlets allows you to neatly conceal your equipment out-of-site behind a hidden door that allows you to insert matching ceiling tiles. It is designed for classrooms and conference and meeting rooms that have a projector and control equipment. This 2 x 2’ enclosure has ample room for 2 full-rack pieces of equipment or 4 half-rack pieces on the built-in shelves. The unit includes an external AC receptacle and a switch/circuit breaker on the ceiling surface, and 5 AC outlets ergonomically spaced to allow room for wall warts inside the enclosure. A white rim door in which you can insert a ceiling tile for a matching look is also included. - General
-
- Designed specifically to fit inside T-stringer frame with 2 x 2' or 2 x 4' spacing drop ceiling
- Five 1 & 1-1/4" conduit knockout (top of box)
- Two 1/2 & 3/4" conduit knockout
- Knockout on near & far sides with 4 mounting holes
- Alternate location for rack mount shelf
- Two removable rack mount shelves
- Applications
-
- Applicable wherever a projector or display is ceiling mounted, including conference centers, schools, general meeting and training facilities, airports, and museums
- Approvals
- Plenum Rated:
- Conforms to UL 2043: UL standard for safety fire test for heat and visible smoke release for discrete products and their accessories installed in air-handling spaces
- Safety Rated:
- Conforms to UL 60950-1: Information technology equipment safety and certified to CSA 22.2 60950-1; safety of information technology equipment
Tested and Certified: - All weight capacity specifications tested and certified to a minimum of a 5x safety factor by Tektronix, Inc. an independent testing laboratory
- ETL approved and recognized for use in the State of California
- DSA (Division of State Architect) suspension approvals must be sought by contractor prior to certain installations
Certifications - Plenum Rated:
Conforms to UL 2043: UL standard for safety fire test for heat and visible smoke release for discrete products and their accessories installed in air-handling spaces - Safety Rated:
Conforms to UL 60950-1: information technology equipment
Safety and certified to CSA 22.2 60950-1: safety of information technology equipment
In the Box FSR CB-22 2 x 2' Ceiling Box with 6 AC Outlets 2 x 1 RU Mount White Rim Door Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR CB-22 2 x 2' Ceiling Box with 6 AC Outlets in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR CB-22 Specs | Dimensions (W x H) | 23.69 x 6.56" (601.72 x 166.62 mm) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
