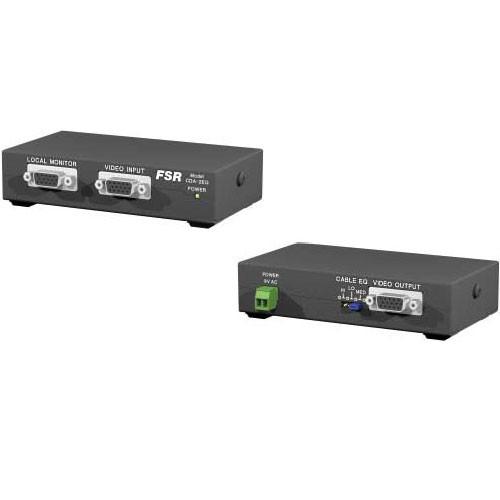

User Manual for FSR CDA-2EQ RGBHV 1x2 Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the FSR CDA-2EQ RGBHV 1x2 Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Distribution Amplifiers (DA's)
|
User manual for the FSR CDA-2EQ RGBHV 1x2 Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The CDA-2EQ RGBHV 1x2 Distribution Amplifier from FSR is a distribution amplifier that features (1) input and (2) outputs. More specifically it is designed to support a local monitor with a second remote monitor placed at a distance. This unit is ideal for use in conference rooms, classrooms, courts of law, staging & rental applications, or churches, among many other possible uses.
It features equalized output to ensure signal integrity even over long distances and will support cable runs of up to 175'. This unit includes a power supply and a mounting kit. It is additionally compatible with both Windows and Mac operating systems. - 1x2 Signal Distribution
- Use this unit to distribute (1) high-resolution RGBHV signal to up to (2) monitors.
- Transmission Distance
- This device will support cable runs of up to 175' with virtually no signal loss.
- Mounting
- It includes a mounting kit for placement above or below tables or on a wall.
- OS Compatibility
- The amplifier will work with both Windows & Mac operating systems.
In the Box FSR CDA-2EQ RGBHV 1x2 Distribution Amplifier Distribution Amplifier 9V Power Supply Mounting Kit Three-Year Warranty against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR CDA-2EQ RGBHV 1x2 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR CDA-2EQ Specs | Input | VIDEO INPUT
Number/Type: (1) RGBHV
Connectors: 15-pin HD female
Level (nominal): analog 0.7Vp-p
Level (maximum): 2Vp-p
Impedance: 75 ohms
Max Resolution: Up to QXGA (2048 x 1536 @ 60Hz) | | Output | EQUALIZED VIDEO OUTPUT
Number/Type: (1) RGBHV
Connectors: (1) 15-pin HD female
Bandwidth:
Based on CDA-2EQ plus specified length of WP8255 (West Penn) cable with full amplitude (0.7v P-P) signal applied: -50' cable 308MHz (-3dB) 0-215MHz +/-0.25dB (with no cable 500 MHz)
-100' cable 225MHz (-3dB) 0-180MHz +/-0.25dB
-150' cable 173MHz (-3dB) 0-150MHz +/-0.25dB Based on CDA-2EQ plus the specified length of WP8255 (West Penn) cable with half amplitude (0.35v P-P) signal applied: -50' cable 507MHz (-3dB) 0-350MHz +/-0.4dB (with no cable 500 MHz)
-100' cable 357MHz (-3dB) 0-300MHz +/-0.4dB
-150' cable 270MHz (-3dB) 0-235MHz +/-0.4dB Level (nominal): unity / user adjustable via HI / MED / LOW jumper
Gain: HI = 125’ to 175’, MED = 60’ to 125’, LOW = 0’ to 60’
Impedance: 75 ohms
Design cable: West Penn WP8255 or equal LOCAL VIDEO OUTPUT
Number/type: (1) RGBHV
Connectors: (1) 15-pin HD female
Bandwidth: 300MHz @ -3dB
Gain: unity (buffered)
Impedance: 75 ohms | | Sync | Input level: 2.0Vp-p to 5.0Vp-p
Output level: 4.0Vp-p into Hi-Z, 2.0Vp-p into 75 ohm
Input Impedance: 511 ohms
Output impedance: 75 ohms
Polarity: Positive or negative
Horizontal frequency: 15kHz to 200kHz
Vertical frequency: 30Hz to 150Hz | | Power | Wall transformer with locking connector 9VAC @ 500mA | | Dimensions (HxWxD) | Not specified by manufacturer | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 8.8 x 5.3 x 3.4" |
