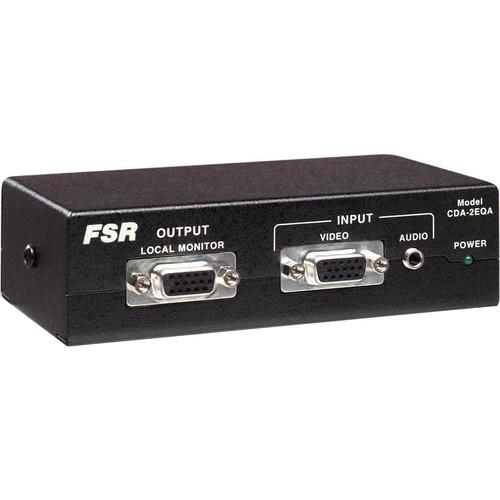

User Manual for FSR CDA-2EQA 1x2 Audio Video Distribution Amplifier - Computer Video , Balanced or Unbalanced Audio Out , EQ Video Click to enlarge the picture
Contents of the user manual for the FSR CDA-2EQA 1x2 Audio Video Distribution
- Product category: Distribution Amplifiers (DA's) FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Distribution Amplifiers (DA's)
|
User manual for the FSR CDA-2EQA 1x2 Audio Video Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The FSR CDA-2EQA is a Computer Video Stereo Audio Distribution Amplifier; it features computer video and balanced or unbalanced stereo audio output. The video circuitry allows EQ adjustment in a compact metal housing. - Compact Size
- Measurements of less than 6" at its longest dimension, this device will fit into small studio spaces or on a desktop very easily.
- EQ Adjustment
- Separate EQ adjustments for each channel allow the outputs to be adjusted for different cable lengths.
- Audio
- Output of balanced or unbalanced audio can be accessed by the user.
In the Box FSR CDA-2EQA 1x2 Audio/Video Distribution Amplifier - Computer Video (HD-15), Balanced or Unbalanced Audio Out (Captive Screw), EQ Video AC Power Adapter 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR CDA-2EQA 1x2 Audio Video Distribution Amplifier - Computer Video , Balanced or Unbalanced Audio Out , EQ Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR CDA-2EQA Specs | Input | Computer Generated Video, 0.7 to 2 Vpp @ 75 ohms, on a HD-15 connector
Unbalanced Stereo Audio, 10K ohms +6 dBv, on a stereo mini | | Output | Computer Generated Video x2, 0.7 to 2 Vpp @ 75 ohms, on HD-15 connectors
Unbalanced or Balanced Stereo Audio x2, @ 50 or 600 ohms, on captive screw connectors | | Video Bandwidth | 300 MHz | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Differential Phase | Not Specified by Manufacturer | | Differential Gain | Not Specified by Manufacturer | | Video Control | EQ adjust for each output | | Coupling | DC | | Audio Bandwidth | 20 kHz | | Signal to Noise Ratio | 98 dB | | Audio THD | 0.01% | | Audio Controls | None | | Power Source | 8 - 14 VDC from an AC power adapter | | Dimensions (WxDxH) | 5.125 x 3.39 x 1.312"
13 x 8.61 x 3.33cm | | Weight | Not Specified by Manufacturer |
