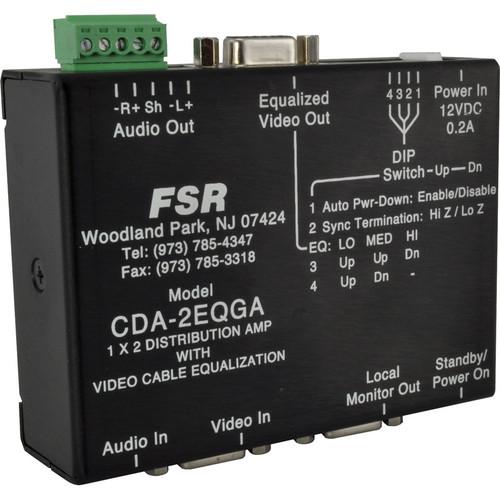

User Manual for FSR CDA-2EQGA High Resolution 1 x 2 Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the FSR CDA-2EQGA High Resolution 1 x
- Product category: Distribution Amplifiers (DA's) FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Distribution Amplifiers (DA's)
|
User manual for the FSR CDA-2EQGA High Resolution 1 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The CDA-2EQGA High Resolution 1 x 2 Distribution Amplifier from FSR is designed to satisfy typical applications requiring a local monitor and a remote display device with a long cable run. The CDA-2EQGA's local monitor output is fully buffered by an independent amplifier stage to elimate interaction with the remote output.The remote output is buffered and equalized to maintain high signal integrity with even the highest video resolutions. This means that the signal that you feed into the CDA-2EQGA will arrive at the far end of the cable with an almost immeasurable amount of loss. Cable runs of 175' are possible using standard mini hi-res coax cable.The remote output sync circuitry provides a termination option switch to help overcome display jitter and image loss associated with improper sync termination. Image jitter and loss problems are infrequent, but unpredictable and frustrating issues that result from differences in VGA cable construction and display input termination.To ensure installed system compatibility, the CDA2EQGA can obtain EDID display information data from either the local (default setting) or remote monitor by setting the internal jumpers. The CDA2EQGA model employs a green automatic power down feature that reduces standby power consumption to less than 50mW, which is a reduction of over 95%. This mode can be disabled in applications where a horizontal sync signal is not present to support this feature.The CDA-2EQGA incorporates a mini stereo input jack on the front and a 5 position pluggable captive screw terminal on the back for balanced stereo audio output. An active audio balancing circuit ensures long, noise-free stereo audio cable runs from the point of installation to the house sound system. The CDA-2EQGA is suitable for laptop or desktop presentations such as PowerPoint that require the secondary audio and video feeds to run longer distances. It can be a versatile complement to a designer's/integrator's palette. - Monitors EDID data selector
- Integrated line driver with cable EQ
- Includes power supply and all mounting hardware
- Applications include conference / board rooms, classrooms, courtrooms, staging and rental, as well as houses of worship
In the Box FSR CDA-2EQGA High Resolution 1 x 2 Distribution Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR CDA-2EQGA High Resolution 1 x 2 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR CDA-2EQGA Specs | | | Type | 1 RGB-HV | | Connectors | 1 female HD-15 | | Level | Nominal: Analog 0.7 Vpp
Maximum: 2 Vpp | | Impedance | 75 Ω | | Maximum Resolution | Up to QXGA (2048 x 1536 @ 60 Hz) | | | | Equalizer | Video
Number/Type: 1 RGB-HV
Connectors: 1 female HD-15
Bandwidth: The performance data is based on the CDA-2EQGA/CDA-2EQG using FSR mini Hi-Resolution cable with a full amplitude (0.7 Vpp) signal applied.
50' cable 310 MHz (-3 dB); 0 to 200 MHz (±0.5 dB)
100' cable 225 MHz (-3 dB); 0 to 140 MHz (±0.5 dB)
150' cable 168 MHz (-3 dB); 0 to 105 MHz) ±0.5 dB)
EQ settings are adjustable via DIP switch
Sync
Input level: 2.0 to 5.0 Vpp
Output level: 4.0 Vpp into Hi-Z, 2.0 Vpp into 75 Ω
Input Impedance: 511 Ω
Output impedance selectable: Lo-Z (DIP SW 2 DN) or Hi-Z (DIP SW 2 UP)
Polarity: Positive or negative
Horizontal frequency: 15 to 200 kHz
Vertical frequency: 30 to 150 Hz | | Local/Remote | Video
Number/type: 1 RGB-HV
Connectors: 1 female HD-15
Bandwidth: 300 MHz at -3 dB
Gain: Unity (buffered)
Impedance: 75 Ω
Sync
Input level: 2.0 to 5.0 Vpp
Output level: 4.0 Vpp into Hi-Z, 2.0 Vpp into 75 Ω
Input Impedance: 511 Ω
Output impedance: 75 Ω
Polarity: Positive or negative
Horizontal frequency: 15 to 200 kHz
Vertical frequency: 30 Hz to 150 Hz | | | | Type | 1 x Stereo unbalanced | | Connectors | 3.5 mm stereo plug | | Input Impedance | 10 kΩ unbalanced | | Maximum Level | With a 600 Ω Load:
+4 dBV balanced load
-2 dBV unbalanced load
With a Hi-Z Load
+6 dBV balanced
0 dBV unbalanced | | | | Type | 1 x balanced Stereo (May be used in unbalanced configuration) | | Connectors | 5 position pluggable screw terminal | | Impedance | 100 Ω balanced/50 Ω unbalanced | | Gain | +6 dB balanced or unbalanced | | Maximum Level | With a 600 Ω Load:
+10 dBV balanced load
+4 dBV unbalanced load
With a Hi-Z Load
+12 dBV balanced
+6 dBV unbalanced Balanced audio output performance, unless otherwise noted. | | | | Requirements | 12 VDC at 200 mA | | Stand By Power | <50 mW |
