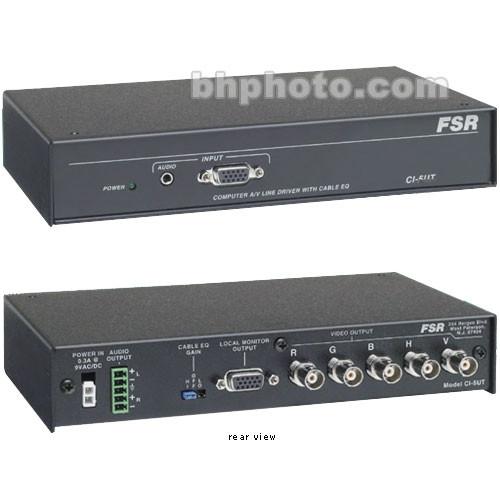

User Manual for FSR CI-5UT Computer Video and Stereo Audio Interface Click to enlarge the picture
Contents of the user manual for the FSR CI-5UT Computer Video and Stereo
- Product category: Signal Converters FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Signal Converters
|
User manual for the FSR CI-5UT Computer Video and Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The CI-5UT Computer Video and Stereo Audio Interface from FSR is a unit designed to provide interfaces with computer video and audio applications. It features signal amplification and balanced audio output for noise-free presentations. This unit is ideal for use in boardrooms, educational settings, training rooms, staging and rental applications, conference centers, and houses of worship, among many other possibilities.
An active line driver that has been specially equalized allows for long cable runs of up to 35' through (5) high-resolution BNC connectors. A second fully buffered output is available on an HD-connector for local monitoring. Unbalanced stereo output is actively balanced to eliminate noise and audio crosstalk and then output to a 5-position Phoenix connector. When this unit is connected to any FSR seamless switcher, it also functions as a universal interface that allows for one central connection point for Composite video, S-Video, Component video, and RGB connections. - Audio-Video Interface
- This unit is designed to provide interfaces with computer video and audio applications.
- Extended Cable Runs
- An active line driver on this unit has been specially equalized to allow for long cable runs of up to 35' through (5) high-resolution BNC connectors.
- Universal Interface
- When connected to any FSR seamless switcher, this unit also functions as a central connection point for Composite video, S-Video, Component video, and RGB connections.
In the Box FSR CI-5UT Computer Video and Stereo Audio Interface Interface Unit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR CI-5UT Computer Video and Stereo Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR CI-5UT Specs | Video Input | Number/type: 1 VGA / SVGA / XGA / SXGA / UXGA / RGBHV / RGBS / RGsB / RsGsBs
Connectors: One 15 pin HD female
Level (nominal): Analog 0.7 Vp-p
Level (maximum): 2 Vp-p
Impedance: 75 ohms | | Video Output | EQUALIZED VIDEO OUTPUT
Number/type: 1 VGA / SVGA / XGA / SXGA / UXGA / RGBHV / RGBS / RGsB / RsGsBs
Connectors: 5 female BNC's ( RGBHV )
Bandwidth: 400 MHz @ -3 dB, 180 MHZ @ +/-.5dB
Level (nominal): Unity / User adjustable via HI / LOW / OFF Jumper
Gain: HI = 125' to 175', LOW = 60' to 125', OFF = 0' to 60'
Impedance: 75 ohms
Design Cable: West Penn WP8255 or any cable having similar attenuation characteristics
LOCAL VIDEO OUTPUT
Number/type: 1 VGA / SVGA / XGA / SXGA / UXGA / RGBHV / RGBS / RGsB / RsGsBs
Connectors: One 15 pin HD female
Bandwidth: 320MHz @ 03dB
Gain: Unity (buffered)
Impedance: 75 ohms | | Audio Input | Bandwidth: 20 Hz to 20 kHz (+/-0.05 dB)
THD + Noise: 0.01% @ 20 kHz at rated Max Output S/N >98 dB
Noise Floor: < 98 dB
Stereo separation: -90 dB @ 1 kHz
Number/type: 1 stereo unbalanced
Connectors: 3.5mm stereo mini connector
Impedance: 10K Ohms unbalanced
Max level: +6 dBm | | Audio Output | Number/type: 1 Balanced Stereo (may be used in unbalanced configuration)
Connector: 5 Position mini Phoenix
Impedance: 50 ohms
Maximum Level: 600 ohms: +12 dBm Balanced / +6 dBm Unbalanced
Hi - Z: +14 dBm Balanced / +8 dBm Unbalanced | | Synchronization | Input level: 2.0 Vp-p to 5.0 Vp-p
Output level: 5.0 Vp-p into Hi-Z, 2.5 Vp-p into 75 ohms Input Impedance: 475 ohms
Output impedance: 75 ohms
Polarity: Positive or negative
Horizontal frequency: 15 kHz - 200 kHz
Vertical frequency: 30 Hz - 150 Hz | | Power | 9 VAC / DC, 50/60 Hz: 8 - 14 VDC, 9 VAC Power Supply included | | Material | Metal | | Dimensions (HxWxD) | 8-1/2 x 5-1/2 x 1-1/2" | | Weight | Not specified by manufacturer |
