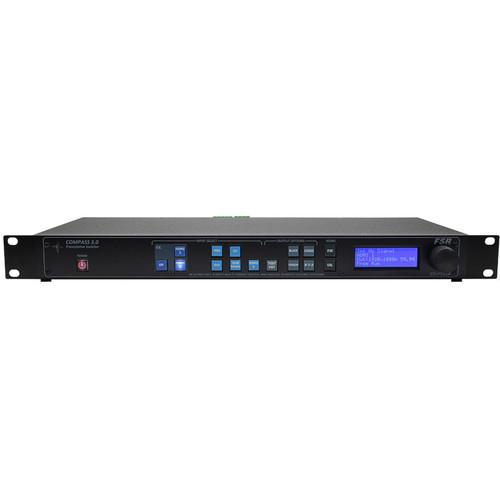

User Manual for FSR Compass 3.0 8 x 1 Presentation Switcher Click to enlarge the picture
Contents of the user manual for the FSR Compass 3.0 8 x 1
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
|
User manual for the FSR Compass 3.0 8 x 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The FSR Compass 3.0 8 x 1 Presentation Switcher is designed for applications such as staging, rental markets, boardrooms, amphitheaters, and multi-purpose training rooms. The standard video inputs include two HDMI 4K, one HDMI, one DisplayPort 4K, one VGA, one Composite Video, and one DVI-U (DVI / HDMI, and VGA / RGBS / YPbPr). The standard video outputs include one 4K HDMI and one DVI/HDMI. - Scaling with low-latency 4K scaling algorithms
- Typical 0.25 seconds input channel switching technology
- Front panel jog-wheel and LCD display for fast easy set-up in the field
- Keypad for direct input selection
- Remote control via RS-232, TCP/IP API, and Web Server
- Gigabit Ethernet for web server and remote control API
- UltraFast input switching in Free-Run mode
- Supports Source Lock when UltraFast is not required
- Brightness, contrast, saturation controls for all source types
- RGB calibration controls (not 42:0 in to 42:0 out)
- Flexible aspect ratio conversion
- DVI-U input also simultaneously supports VGA / RGBS / YPbPr legacy analog formats with a suitable cable
In the Box FSR Compass 3.0 8 x 1 Presentation Switcher Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR Compass 3.0 8 x 1 Presentation Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR CO-PS81 Specs | Inputs | 2 x HDMI 4K, 1 x HDMI HD, 1 x DisplayPort 4K
1 x DVl-U supporting VESA modes (SD, HD, can be configured as fourth HDMI input)
1 x VGA Analog, 1 x Composite PAL / NTSC / SECAM
HDCP supported on all HDMI/DVI/DisplayPort I/O | | Input and Output Formats | 4K / UHD (HDMI 4K / DisplayPort only)
3840 x 2160p (23.97 / 24 / 25 / 29.94 / 30 / 50 / 59.94 / 60 Hz)
4096 x 2160p (23.97 / 24 Hz)
UHD / 4K 50 / 59.94 / 60 Hz modes supported in 4.2.0 format
HD 1280 x 720p, 1920 x 1080, 1920 x 1080psf, 1920 x 1084 (23.97 / 24 / 25 / 29.94 / 30 / 50 / 59.94 / 60 Hz)
2048 x 1080p (23.97 / 24 / 25 / 29.94 / 30 / 50 / 59.94 / 60 Hz)
ED 480p, 576p (not via SDI)
Common VESA graphics formats from VGA to 4K, (modes higher than WUXGA on 4K capable input channels only) | | Outputs | 1 x HDMI 4K via HDMI connector
1 x DVI / HDMI via DVI connector | | Power Requirements | 100 to 264 VAC | | Power Consumption | 65 W | | Certifications | MET C / US Agency Listed UL60950-1 / CSA C22.2 No. 60950-1 / E113349 | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer |
