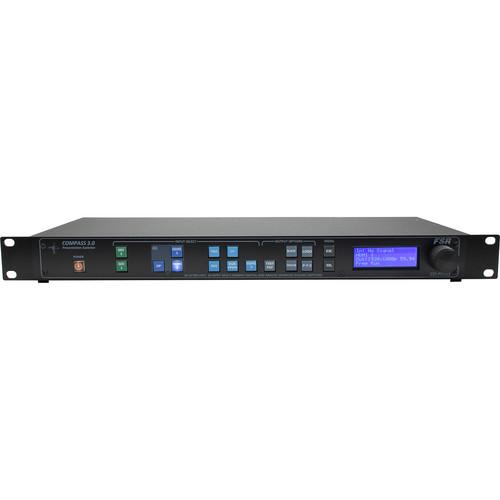

Product description The FSR Compass 3.0 9 x 1 Presentation Switcher is designed for applications such as staging, rental markets, boardrooms, amphitheaters, and multi-purpose training rooms. The standard video inputs include two HDMI 4K, one HDMI, one DisplayPort 4K, one VGA, one Composite Video, one DVI-U (DVI / HDMI, and VGA / RGBS/ YPbPr), and one HDBaseT 4K. The standard video outputs include one 4K HDMI, one DVI/HDMI, and one HDBaseT 4K. - Scaling with low-latency 4K scaling algorithms
- Typical 0.25 seconds input channel switching technology
- Front panel jog-wheel and LCD display for fast easy set-up in the field
- Keypad for direct input selection
- Remote control via RS-232, TCP/IP API, and Web Server
- Gigabit Ethernet for web server and remote control API
- UltraFast input switching in Free-Run mode
- Supports Source Lock when UltraFast is not required
- Brightness, contrast, saturation controls for all source types
- RGB calibration controls (not 42:0 in to 42:0 out)
- Flexible aspect ratio conversion
- DVI-U input also simultaneously supports VGA/RGBS/YPbPr legacy analog formats with a suitable cable
In the Box FSR Compass 3.0 9 x 1 Presentation Switcher with HDBaseT Input/Output Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR Compass 3.0 9 x 1 Presentation Switcher with HDBaseT Input Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR CO-PS91 Specs | Inputs | 2 x HDMI 4K, 1 x HDMI HD, 1 x DisplayPort 4K
1 x HDBaseT 4K
1 x DVI-U supporting VESA modes (SD, HD, can be configured as fourth HDMI input)
1 x VGA Analog, 1 x Composite PAL/NTSC/SECAM
HDCP supported on all HDMI/DVI/DisplayPort I/O | | Input and Output Formats | 4K/UHD (HDMI 4K / DisplayPort/HSBaseT only)
3840 x 2160p (23.97 / 24 / 25 / 29.94 / 30 / 50 / 59.94 /60 Hz)
4096 x 2160p (23.97 / 24 Hz)
UHD/4K (50 / 59.94 / 60 Hz modes supported in 4.2.0 format)
HD 1280 x 720p, 1920 x 1080i, 1920 x 1080psf, 1920 x 1084 (23.97 / 24 / 25 / 29.94 / 30 / 50 / 59.94 / 60 Hz)
2048 x 1080p (23.97 / 24 / 25 / 29.94 / 30 / 50 / 59.94 / 60 Hz)
ED 480p, 576p (not via SDI)
Common VESA graphics formats from VGA to 4K, (modes higher than WUXGA on 4K capable input channels only) | | Outputs | 1 x HDMI 4K via HDMI connector
1 x DVI/HDMI via DVI connector
1 x HDBaseT 4K | | Power Requirements | 100 to 264 VAC | | Power Consumption | 65 W | | Certifications | MET C / US Agency Listed (UL60950-1 / CSA C22.2 No. 60950-1 / E113349) | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer |
