User Manual for FSR CVD-144 Four Channel 1x4 Video Distribution Amplifier - Four Bridgeable DA's, Composite Click to enlarge the picture
Contents of the user manual for the FSR CVD-144 Four Channel 1x4 Video
- Product category: Distribution Amplifiers (DA's) FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Distribution Amplifiers (DA's)
|
User manual for the FSR CVD-144 Four Channel 1x4 Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

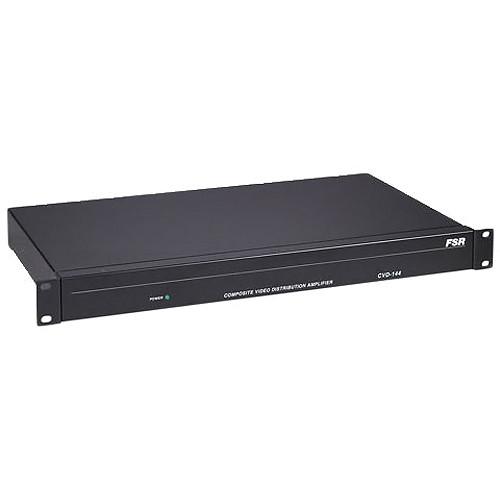

Product description The FSR CVD-144 is a 4 channel 1x4 Distribution Amplifier; it features four 1x4 composite distribution amplifiers. Each DA can be used separately or bridged to form various configuration distribution amplifiers. - Bridgeable
- This DA has four separate 1x4 DA's that can be switched to various configurations. Some of these configurations are two 1x8, 1x12, 1x16 or the default four 1x4.
- High Bandwidth
- A bandwidth of better than 350 MHz allows this unit to pass high resolution signals such as HDTV. Each channel can pass one channel of RGBS for hi band signals.
- Rackmountable
- This device was designed to fit into one Rack Unit of studio space.
In the Box FSR CVD-144 Four Channel 1x4 Video Distribution Amplifier - Four Bridgeable DA's, Composite (BNC) Power Cord 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR CVD-144 Four Channel 1x4 Video Distribution Amplifier - Four Bridgeable DA's, Composite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR CVD-144 Specs | Input | Composite Video x1, for each of the four channels, @ 75 ohms, on BNC connectors | | Output | Composite Video x4, for each of the four channels, @ 75 ohms, on BNC connectors | | Video Bandwidth | 400 MHz Normal
350 MHz Bridged | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Differential Phase | 0.04° | | Differential Gain | 0.04% | | Video Control | Rear Panel Bridge Switches x4 | | Coupling | Not Specified by Manufacturer | | Power Source | 110 to 220 VAC @ 50/60 Hz | | Dimensions | 19 x 7 x 1.75"
48.26 x 17.78 x 4.45cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 11.45 lb | | Box Dimensions (LxWxH) | 21.5 x 15.2 x 5.2" |
