Product description The Digital Video 4x1 Scaling Switcher with HDBaseT & HDMI Outputs from FSR is a true HDBaseT 5-play output that transmits HD video (up to 4K @ 60 Hz), audio, bi-directional RS-232 control, Ethernet, and power via one Cat-6A shielded cable for up to 328'. Due to the scaling engine, it needs to be powered locally but it can remotely power any of the (separately available) HDBaseT wall plate transmitters or non-scaling transmitters via the Cat-6A shielded cable. The Digital Video 4x1 Scaling Switcher can be controlled via front panel push-buttons, contact closure, RS-232, or auto-switching to the latest input, when detecting any input connected or disconnected. It also provides LED feedback for contact closures and will work with FSR's HuddleVU collaboration system. -

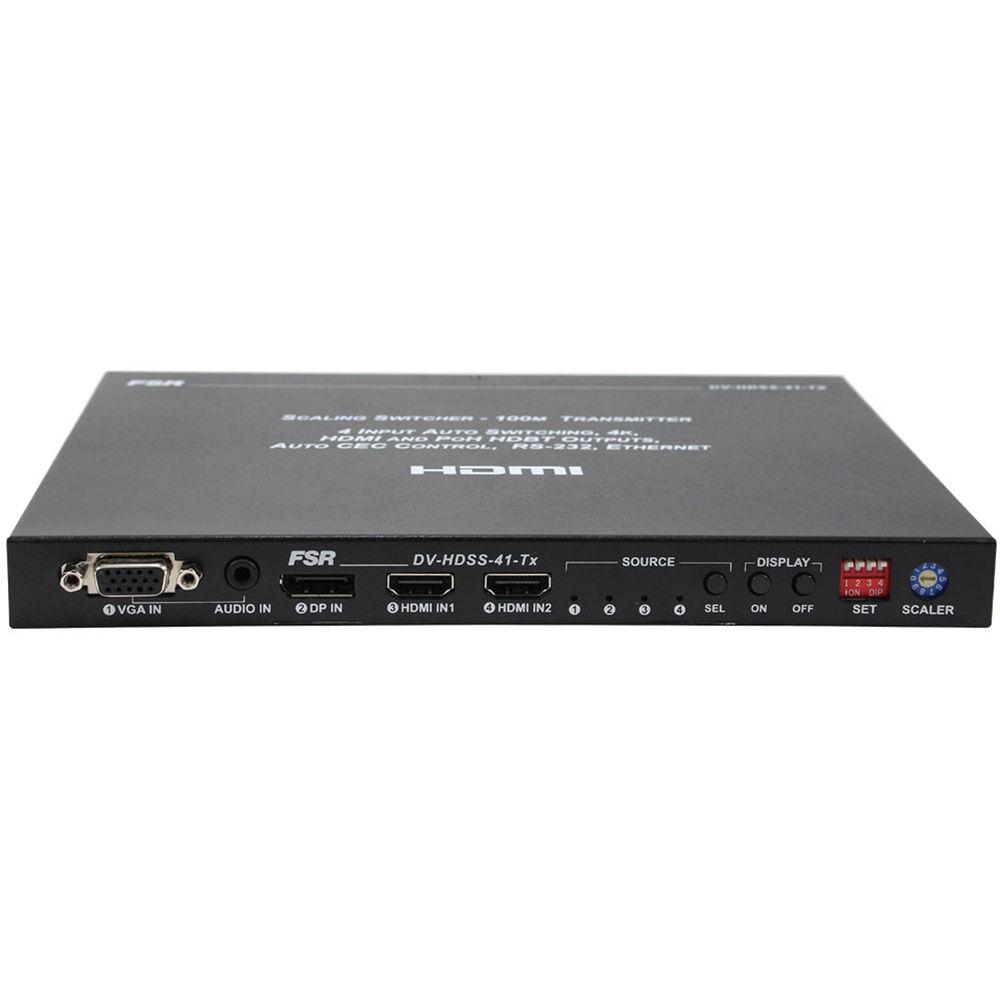

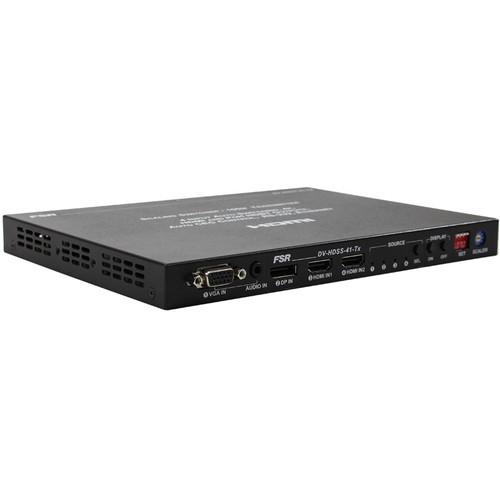

- Four inputs (two HDMI, one DisplayPort, one VGA (HD-15) with stereo audio (1/8")

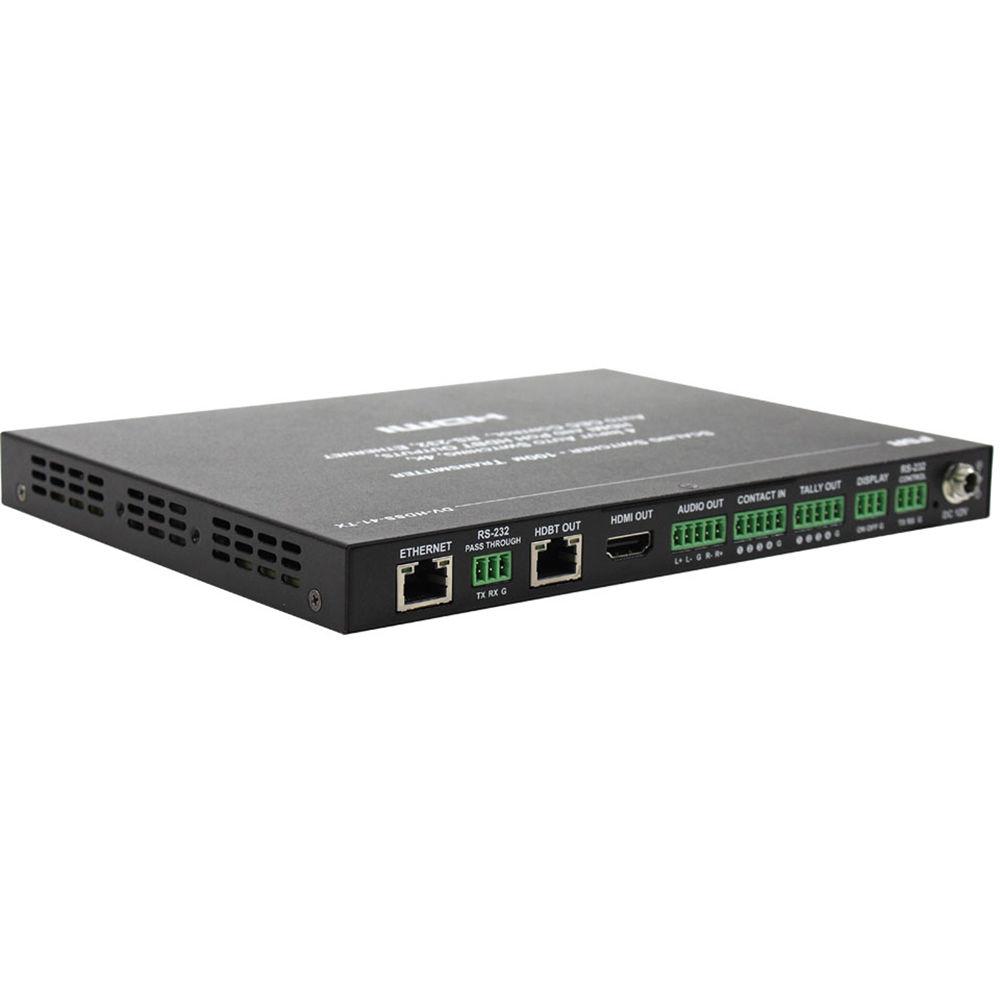

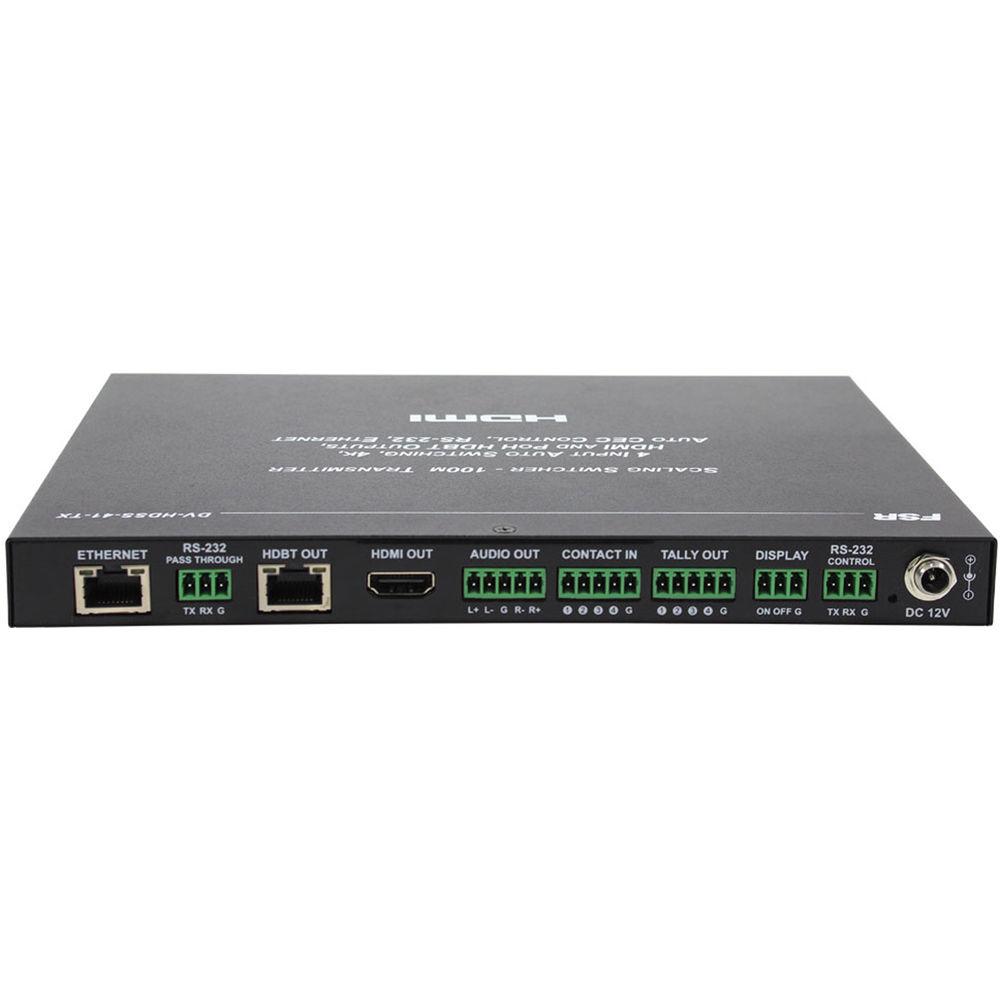

- One HDMI out and a mirrored HDBaseT output
In the Box FSR Digital Video 4x1 Scaling Switcher with HDBaseT & HDMI Outputs AC Cable with US Standard Power Adapter (12 VDC 3A) 3 x Phoenix Male Connector (3.81 mm, 3 pins) 3 x Phoenix Male Connector (3.81 mm, 5 pins) Mounting Brackets (Pair) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR Digital Video 4x1 Scaling Switcher with HDBaseT & HDMI Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DV-HDSS-41-TX Specs | | | HDMI Resolutions | SMPTE:
720 x 480p (59.94/60 Hz)
720 x 576p (50 Hz)
1280 x 720p (50/59.94/60 Hz)
1920 x 1080p (50/59.94/60 Hz)
3840 x 2160p (24/25/30/50 Hz) | | VGA Resolution | VESA:
800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1200 (all @ 60 Hz) | | Maximum Data Rate | 10.2 Gb/s | | Output Resolutions | Supports up to 4K UHD / 2160p (3840 x 2160) @ 30 Hz (4:2:0 8-bit) | | Video Impedance | 100 Ohms | | | | Video Input | 2 x HDMI (1.4) Type-A 19-pin, female
1 x DisplayPort (1.2)
1 x HD-15, female | | Audio Input | 1 x 1/8" (3.5 mm) mini stereo jack (embedded with VGA Input) | | HDMI Output | 1 x HDMI (1.4) Type-A 19-pin, female | | HDBaseT | Output: 1 x RJ45 (shielded) HDBaseT 1.4 | | Audio Output | 1 x 5-pin captive screw terminal | | Audio Formats | HDMI Out: PCM 2.0 and Dolby 5.1
HDBaseT Out: Multi-channel digital audio supports up to 7.1 DTS master HD & Dolby True HD
Audio Out: Balanced stereo audio left/right PCM2.0 | | Ethernet | 1 x RJ45 (shielded) 100 Base-T Ethernet | | RS-232 | Pass Through: 1 x 3-pin captive screw terminal (Tx/Rx/Ground) | | RS-232 Control | 1 x 3-pin captive screw terminal (Tx/Rx/Ground) | | Contact Closure | Input: 1 x 5-pin captive screw terminal (4 inputs and ground) | | Tally Output | 1 x 5-pin captive screw terminal (4 inputs and ground) | | Display | 1 x 3-pin captive screw terminal (On/Off/Ground) | | Power Input | 12 VDC locking screw terminal | | | | Cable | CAT-5e / CAT-6:
328' (100 m): 1080p @ 60 Hz (36 BPP [bits per pixel])
229' (70 m): 1080p @ 60 Hz (48 BPP [bits per pixel]), 3D, 4K UHD / 2160p (3840 x 2160) @ 30 Hz (4:2:0 8-bit
CAT-6A / CAT-7 (Shielded):
328' (100 m): 1080p @ 60 Hz (48 BPP [bits per pixel]), 3D, 4K UHD / 2160p (3840 x 2160) @ 30 Hz (4:2:0 8-bit) | | Power Supply | 12 VDC 3 A | | Power Consumption | 22 W (maximum) | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | ESD Protection | Human-body Model: ±8 kV (Air-gap discharge) / ±4 kV (contact discharge) | | Dimensions (W x D x H) | 8.66 x 6.46 x 0.83" (220 x 164.4 x 21 mm) | | Weight | 1.80 lbs (0.82 kg) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 14.1 x 10.3 x 3.3" |
