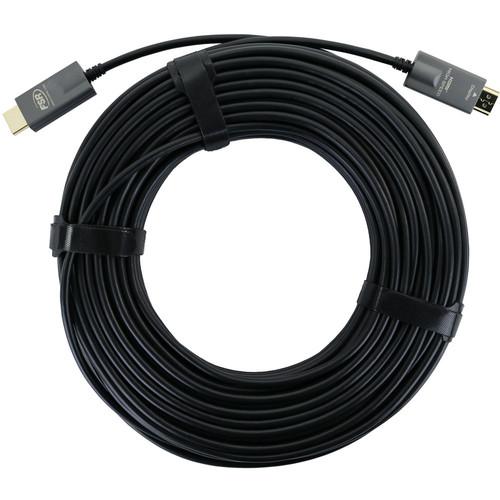

User Manual for FSR DR-H2.0-23M Active Hybrid Fiber Copper High-Speed HDMI Cable Click to enlarge the picture
Contents of the user manual for the FSR DR-H2.0-23M Active Hybrid Fiber Copper
- Product category: HDMI Cables FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR HDMI Cables
|
User manual for the FSR DR-H2.0-23M Active Hybrid Fiber Copper contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description Achieve 4K 60p performance over 75.46' with the FSR DR-H2.0-23M Active Hybrid Fiber/Copper High-Speed HDMI Cable. It features active circuitry for enhanced transmission of HDR, 4K UHD resolution, and more over its length. ARC capability helps minimize cable clutter by sending display-based audio to your sound system through the same cable that outputs video from your system to your display. This directional cable is labeled at each end to help ensure proper installation. -
- HDMI 2.0 with 4K/60 Hz, YUV 4:4:4, Deep Color, and HDCP 2.2 compliance
- Designed to overcome distance limitations of traditional copper cables
- Engineered to retain signal integrity
- No external power or special tooling required
- Cable and connectors fit within a 1" conduit
- Plenum rated – Type CMP/FT6
- Supports DDC for HDCP and EDID; also supports ARC, PCM, Dolby, DTS-HD, and TrueHD audio
- Discreet black jacket helps the cable blend in after installation
- Connector shells are labeled "source" and "display" to allow proper connection
- Seven internal copper wires supply the necessary power to the embedded circuitry at both ends of the cable
In the Box FSR DR-H2.0-23M Active Hybrid Fiber/Copper High-Speed HDMI Cable (75.46') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR DR-H2.0-23M Active Hybrid Fiber Copper High-Speed HDMI Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DR-H2.0-23M Specs | Connector 1 | HDMI Type-A Male | | Connector 2 | HDMI Type-A Male | | Cable Length | 75.46' / 23 m | | Bandwidth | 18 Gbps | | Maximum Resolution Support | 3840 x 2160 at 60 Hz | | 3D Support | Yes | | HDMI Version | 2.0 | | Jacket Type | Polyvinyl Chloride (PVC) | | Shielding | Foil | | Conductor Material | Copper, Fiber Optic | | Compliance | Audio Return Channel (ARC), CEC, EDID, HDCP | | Rating | CMP | | Certifications | CSA, RoHS, UL, as per Manufacturer | | Outer Diameter | 0.2" / 5.08 mm | | Bend Radius | 0.5" / 12.7 mm | | Maximum Tensile Load | 222.41 N / 22.68 kg | | Power Consumption | 0.25 W | | Operating Temperature | 32 to 122°F / 0 to 50°C |
