User Manual for FSR DR-PCB-H100M HDMI Digital Ribbon Cable Click to enlarge the picture
Contents of the user manual for the FSR DR-PCB-H100M HDMI Digital Ribbon Cable
- Product category: HDMI Cables FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR HDMI Cables
|
User manual for the FSR DR-PCB-H100M HDMI Digital Ribbon Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

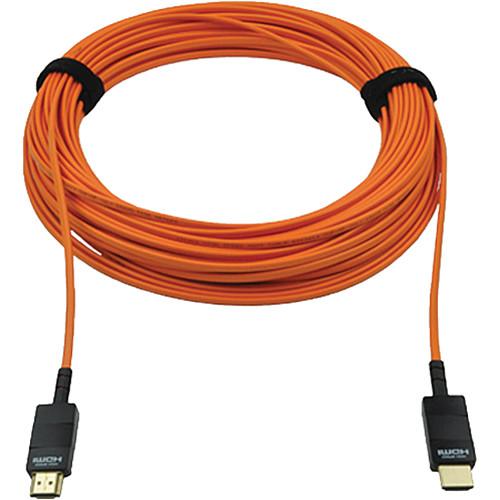

Product description The 328' DR-PCB-H100M HDMI Digital Ribbon Cable from FSR utilizes proprietary technology to allow high-speed HDMI signal transmission. The cable’s hybrid polymer/copper structure delivers a speed of 10.2 Gb/s and can handle 1080p Full HD, 3D, Deep Color, HDMI-CEC, HDCP, and most other high-resolution formats. Please note that the cable does not support Audio Return Channel. It features a small ribbon-shaped jacket (5 x 2.5mm). The cable is UL listed, plenum-rated, and provides reliable optical performance.
Active circuitry embedded in the connector shells provide all the active signal buffering needed, and eliminates the need for additional bulky electronics. With optical-to-electronic conversion contained inside the connectors, this cable uses the same standard HDMI ports as copper cables. The cable does not require any bulky external power connectors or extenders, and instead draws power entirely from the HDMI port without exceeding HDMI maximum power output standards. Optical communication provides immunity to electromagnetic and radio-frequency interference and offers reliability in challenging environments such as outdoor displays, convention centers, stadiums, airports, shopping malls, hospitals, factories, and other potentially high-noise environments. The optical component within the ribbon cable bundle is plastic fiber and can be installed in areas that require tight cable bend. - Overcomes distance limitations of conventional copper HDMI cables
- Signal integrity is uncompromised
- Multi-format compatibility
- No external power or special tooling required
- Cable and connectors easily fit within a 1" conduit
- Plenum Rated: Type CMP, CMR
In the Box FSR DR-PCB-H100M HDMI Digital Ribbon Cable (328') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR DR-PCB-H100M HDMI Digital Ribbon Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DR-PCB-H100M+ Specs | Connector 1 | HDMI Type-A Male | | Connector 2 | HDMI Type-A Male | | Cable Length | 328' / 100 m | | Bandwidth | 10.2 Gbps | | Rating | CMP-OF | | Certifications | RoHS, as per Manufacturer | | Connector Dimensions (W x H) | 0.2 x 0.1" / 5.0 x 2.8 cm | | Bend Radius | 0.2" / 5 mm | | Maximum Tensile Load | 100 N / 10 kg | | Power Consumption | 0.07 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 16.6 x 15.1 x 5.8" |
