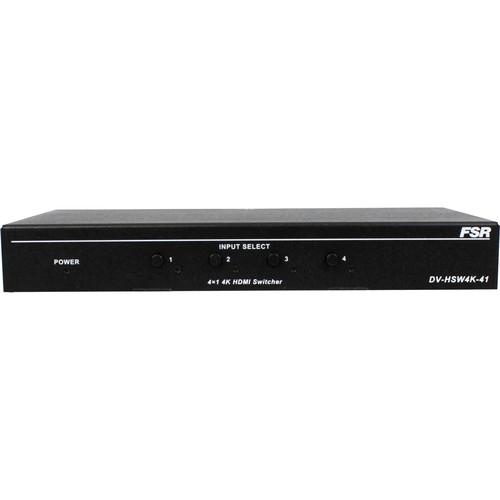

Product description The FSR DV-HSW4K-41 4x1 4K HDMI Switcher is suitable for managing multiple sources. It provides four HDMI inputs for direct connection between four sources and a display without signal loss. The front panel features four buttons to select the desired HDMI source, with indicators to show the currently selected source. The switcher can be used in digital entertainment centers, control centers, conference rooms, schools, and corporate training environments. The DV-HSW4K-41 is also an integral part of FSR's HuddleVU Collaboration Systems. - Supports input/output resolutions up to 4K@30 Hz
- Both input/output ports support HDMI cable run up to 32.8 ft (10m)
- Four push-buttons on front panel to select the input source
- 12 VDC Power supply with locking connector included
- Applications: Hotel lobbies, classrooms, boardrooms, command and control centers, PoP/PoS kiosks, digital signage, and collaboration systems such as HuddleVU
In the Box FSR DV-HSW4K-41 4x1 4K HDMI Switcher 12 VDC Power Supply 2 x Mounting Ear 3.81mm Phoenix Connector (3-Pin) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR DV-HSW4K-41 4x1 4K HDMI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DV-HSW4K-41 Specs | | | Input | 4 x HDMI | | Output | 1 x HDMI | | Signal Type | HDMI 1.4 with HDCP | | Input/Output Resolutions | 4K x 2K@30
1080p60 / 50 / 30 / 24
1080i30 / 25
720p60 / 50
576p
576i
480p
480i | | Maximum Pixel Clock | 297 MHz | | Input Video Signal | 0.5 to 1.5 Vpp | | Video Impedance | 100 Ohms | | | | Power Supply | 12 VDC, 0.5 A | | Maximum Power Consumption | 4.1 W | | | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Operating Humidity | 10 to 90%, Non-condensing | | Storage Temperature | -4 to 140°F (-20 to 70°C) | | Storage Humidity | 10 to 90%, Non-condensing | | ESD Protection | Human-Body Model: ±4 kV (Contact discharge) | | | | Control Method | Front panel buttons, RS-232 control | | Dimensions (L x W x H) | 7.5 x 3.5 x 1.0" (191 x 89 x 26 mm) | | Weight | 1 lb (0.5 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.9 x 6.7 x 3.2" |
