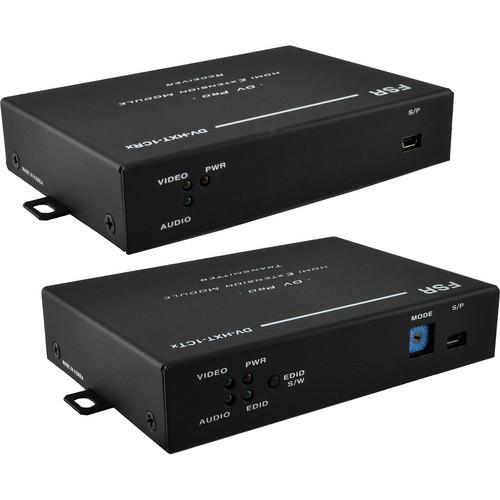

User Manual for FSR DV-HXT-1 HDMI to CAT-X Extender over Single Cable Click to enlarge the picture
Contents of the user manual for the FSR DV-HXT-1 HDMI to CAT-X Extender
- Product category: Video Extenders & Repeaters FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Video Extenders & Repeaters
|
User manual for the FSR DV-HXT-1 HDMI to CAT-X Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The DV-HXT-1 HDMI to CAT-X Extender over Single Cable from FSR converts between HDMI and CAT5e / CAT6. It uses one CAT-5e / CAT-6 cable to extend a high-definition display far away from its HDMI source.With CAT-6 cable it reaches up to 200’ (60m) at 1080i resolution and 165’ (50m) at 1080p resolution. It is designed for professional installations. Installers can easily obtain the CAT5e / CAT6 cable and terminate it in the field. CAT5e / CAT6 cable provides more flexibility and simple installation.The DV-HXT-1 consists of one transmitter and one receiver as a pair. - Extends HDMI signals with CAT6 cable at 1080i up to 20' (60m) and at 1080p up to 165'(50m) from the source
- Extends HDMI signals with CAT5e cable at 1080i up to 165' (50m) and at 1080p up to 130' (40m) from the source
- Audio and video are digitally transmitted on a single cable
- LED feedback for signal verification
- Applications: Video wall systems; large LED sign boards; medical imaging equipment; TV broadcast stations; auditoriums; conference rooms; video systems in places of worship
In the Box FSR DV-HXT-1 HDMI to CAT-X Extender over Single Cable Transmitter Receiver External 12V Power Supply Adapter 2 x 6.5' (2m) HDMI Cable Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR DV-HXT-1 HDMI to CAT-X Extender over Single Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DV-HXT-1C Specs | Bandwidth | 25 to 165 MHz | | Resolution | HDTV: 480p, 720p, 1080i/p
VESA Standard: WUXGA (1920 x 1200) @ 60 Hz | | Connector Type | HDMI Type A female / RJ-45 | | Power Supply | 12 VDC, 3 A | | Power Consumption | 10 W (maximum) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | Less than 80% | | Dimensions (W x D x H) | 5.1 x 4.1 x 1.1" (130.0 x 105.0 x 30.0 mm) for each of TX and RX | | Weight | 0.8 lb (0.4 kg) for each of TX and RX |
