User Manual for FSR DV-HXT-1CTX HDMI over CATx Extender Local Unit Click to enlarge the picture
Contents of the user manual for the FSR DV-HXT-1CTX HDMI over CATx Extender
- Product category: Video Extenders & Repeaters FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Video Extenders & Repeaters
|
User manual for the FSR DV-HXT-1CTX HDMI over CATx Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

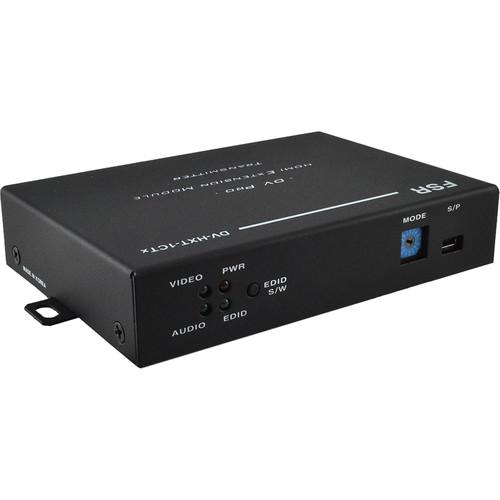

Product description The DV-HXT-1CTX HDMI over CATx Extender Local Unit from FSR is a standalone unit designed to transmit HDMI video and audio signals to a DV-HXT-1CRX (sold separately). The local unit uses one CAT5e or CAT6 cable to extend a high-definition display far from its HDMI source location. With a CAT6 cable it reaches up to 200' at 1080i resolution and 165' at 1080p resolution. On the front panel, the DV-HXT-1CTX HDMI features a rotary switch Mode control for screen resolution read and an EDID push-button for data saving functionality. - Extends HDMI signals with CAT6 cable at 1080i up to 200' and at 1080p up to 165' from the source
- Extends HDMI signals with CAT5e cable at 1080i up to 165' and at 1080p up to 130' from the source
- Audio and video are digitally transmitted on a single cable
- LED feedback for signal verification
- Applications: Video wall systems; large LED sign boards; medical imaging equipment; TV broadcast stations; auditoriums; conference rooms; video systems
In the Box FSR DV-HXT-1CTX HDMI over CATx Extender Local Unit 12 VDC Power Supply 6.5' HDMI Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR DV-HXT-1CTX HDMI over CATx Extender Local Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DV-HXT-1CTX Specs | Resolutions | HDTV: 480p, 720p, 1080i / p
VESA Standard: WUXGA (1920 x 1200) at 60 Hz | | Transmission Range | 165' (50 m) at 1080i
130' (40 m) at 1080p | | Data Transmission Speed | 2.25 Gbps (Single link) | | Bandwidth | 25 to 165 MHz | | Connectors | Back Panel:
1 x HDMI, video input
1 x RJ-45, CATx output
1 x 5 VDC barrel power plug
Front Panel:
1 x Mini USB, S/P
Indicators:
1 x LED green, video
1 x LED green, audio
1 x LED green, EDID
1 x LED red, power
Controls:
1 x Mode selector rotary switch
1 x Pushbutton, EDID | | Power Supply | 12 VDC, 3 A | | Power Consumption | 10 W (maximum) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity Tolerance | Less than 80% | | Dimensions (D x W x H) | 5.1 x 4.1 x 1.2" (13.0 x 10.4 x 3.0 cm) | | Weight | 0.8 lb (0.4 kg) |
