User Manual for FSR DV-HXT-2C HDMI to HDMI over CATx Extender System Click to enlarge the picture
Contents of the user manual for the FSR DV-HXT-2C HDMI to HDMI over
- Product category: Video Extenders & Repeaters FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Video Extenders & Repeaters
|
User manual for the FSR DV-HXT-2C HDMI to HDMI over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

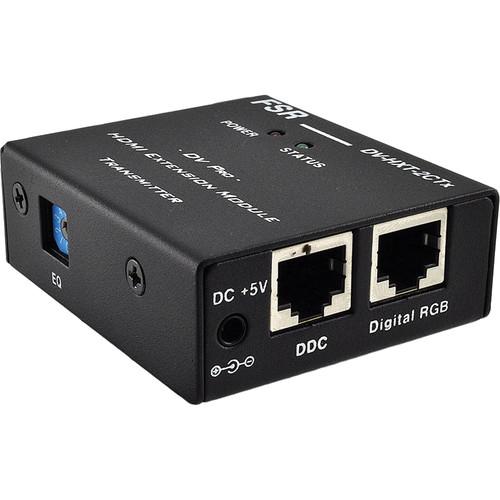

Product description The DV-HXT-2C HDMI to HDMI over CATx Extender System from FSR is an extender system which includes a local transmitter unit and a remote receiver unit. An HDMI source connected to the local unit is transmitted using two CAT5/CAT6 UTP cables. The DV-HXT-2C is designed for commercial and residential applications.
This system is built to eliminate the digital noises and boost the signal strength of the HDMI video signal. The DV-HXT-2C is expected to function for more than 50,000 hours of use at a 90% confidence level.
The DV-HXT-2 extends HDMI signals with a CAT6 cable at 1080i for a distance of up to 200', and at 1080p, for up to 165' from the source. Using CAT5e, it extends HDMI signals at 1080i, for a distance of up to 165' and at 1080p, for up to 130' from the source. - Extends HDMI signals with CAT6 cable at 1080i up to 200' and at 1080p up to 165' from the source
- Extends HDMI signals with CAT5e cable at 1080i up to 165' and at 1080p up to 130' from the source
- Audio and video are digitally transmitted
- LED feedback for signal verification
- Signal amplification for signal reliability and long length signal transmission
- Picture quality- no signal loss and digital noise free
- HDCP (High-bandwidth Digital Content Protection)
In the Box FSR DV-HXT-2C HDMI to HDMI over CATx Extender System 2 x 5 VDC Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR DV-HXT-2C HDMI to HDMI over CATx Extender System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DV-HXT-2C Specs | Resolution | 200' (60 m) at 720p / 1080i at CAT6
165' (45 m) at 1920 x 1080p at CAT6
1080p at 60 Hz, UXGA (1920 x 1200) maximum
Maximum Length:
1920 x 1080i -> 200' (60 m) at CAT6
1920 x 1080p -> 165' (45 m) at CAT6 | | Transmission Speed | 1.65 Gbps (Single link) | | Bandwidth | 25 - 165 MHz | | Connectors | Local Unit:
1 x 19-pin female HDMI, video input
2 x RJ-45, interconnect
1 x 5 VDC power plug
Remote Unit:
1 x 19-pin female HDMI, video output
2 x RJ-45, interconnect
1 x 5 VDC power plug | | Cable Compatibility | CAT5 / CAT6 UTP | | Power Supply | 5 VDC, 2 A | | Power Consumption | 5 W maximum | | EQ Controls | Strength control switch for transmission signal | | LED | Power: on / off | | Operating Temperature | 32 to 104° F (0 to 40° C) | | Humidity (Non-condensing) | Less than 80% | | Dimensions (W x D x H) | 2.8 x 2.5 x 1.1" (7.0 x 6.3 x 2.7 cm) for each unit | | Weight | 0.33 lb (0.15 kg) for each of Tx and Rx |
