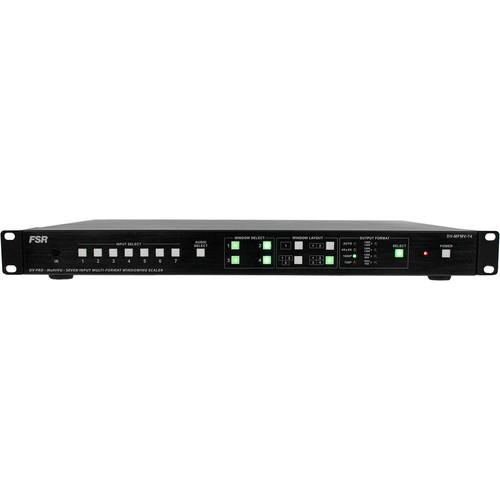

Product description The DV-MFMV-74 DV PRO MultiVU 7x1 Multi-Format Windowing Scaler from FSR has seven multi-format inputs (four HDMI, two DisplayPort, and one VGA/RGB/YPbPr) with one HDMI output that supports scaled resolutions up to 4K x 2K @ 30 Hz. Up to four of the inputs can be displayed on the same screen simultaneously in a single, dual, triple, or quad screen layout. Each input also has captive screw terminals, audio inputs, and eight audio channel outputs as well. The switcher can be controlled from the front panel, via RS-232, or via IP with the integrated GUI control. It easily integrates with the HuddleVU FLEX Collaboration System (available separately). - Four HDMI, two DisplayPort, and one RGB/YPbPr (HD-15) inputs
- HDMI & DisplayPort inputs support resolutions up to 4K x 2K @ 30 Hz
- Supports MHL on the four HDMI inputs
- Each source input is automatically scaled to match the optimal output resolution
- Any of the seven sources can be output in a single, double, triple, or quadruple window layout to a display device through one HDMI output in resolutions up to 4K x 2K @ 30 Hz and 1080p
- Seamless rapid switching between any of the seven inputs
- Each input also has an unbalanced stereo audio input via captive screw terminals
- Supports multiple-channel HDMI, DisplayPort audio extraction, optical fiber, and eight-channel analog outputs
- Easy-to-use front panel control, Web GUI, IR, RS-232, and IP control as well
- Can be controlled via the FLEX Touch Panel Control System (available separately) with pre-made templates available
- Can be easily integrated with the HuddleVU Flex Collaboration Systems (available separately)
- 1 RU height, 19" width standard enclosure, rack-mountable design
In the Box FSR DV-MFMV-74 DV PRO MultiVU 7x1 Multi-Format Windowing Scaler Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR DV-MFMV-74 DV PRO MultiVU 7x1 Multi-Format Windowing Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DV-MFMV-74 Specs | | | Maximum Resolution | 3840 x 2160 @ 30 Hz | | | | Video Input | 4 x HDMI type A, female
2 x DisplayPort (full size) 20-pin, female
1 x 15-pin VGA, female | | Video Output | 1 x HDMI Type A, female | | Audio Input | 7 x 3.5 mm Captive screw terminal block | | Audio Output | 4 x 3.5 mm Captive screw terminal block
1 x Optical | | RS-232 | 1 x DB-9, female | | IP | 1 x RJ-45 | | USB | 1 x USB Type A, female | | Power Connector | 110 to 240 VAC 3-pin | | | | Power Input | 110 to 240 VAC | | Maximum Power Consumption | 15 W | | | | Dimensions (W x H x D) | 17.3 x 1.7 x 10.7" (43.9 x 4.3 x 27.2 cm) | | Weight | 7.3 lb (3.3 kg) |
