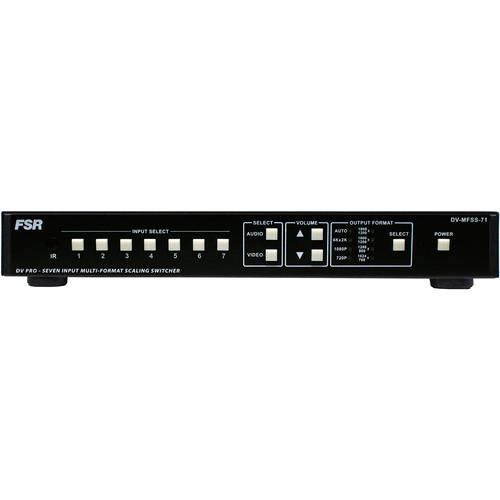

User Manual for FSR DV-MFSS-71 7x1 Multi-Format Seamless Scaling Switcher Click to enlarge the picture
Contents of the user manual for the FSR DV-MFSS-71 7x1 Multi-Format Seamless Scaling
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
|
User manual for the FSR DV-MFSS-71 7x1 Multi-Format Seamless Scaling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The DV-MFSS-71 7x1 Multi-Format Seamless Scaling Switcher from FSR can be used for switching and scaling applications in boardrooms, houses of worship, medical, and educational settings, among many other possible uses and settings. It features four HDMI, one DisplayPort, one DVI, and one 15-pin VGA video inputs, with one HDMI output that supports scaled resolutions up to 4K 2160p @ 30 Hz. The 15-pin VGA input supports VGA, RGB, and YPbPr up to 1080p. Each source input is automatically scaled to match the optimal output resolution. The switcher offers seamless and rapid switching between any of the input sources, preventing still frame or black screen during switching.The HDMI, DisplayPort, and DVI inputs have embedded audio along with analog stereo inputs. The HDMI inputs support 7.1 multichannel embedded audio, and DisplayPort supports embedded stereo audio. The VGA input also has an analog stereo input. The switcher features an additional analog input that is mixed into the audio output for voice-over program applications. The audio outputs are available either embedded on the HDMI port, via the multi-channel digital coaxial, or via stereo analog out connectors. The audio can follow the video during switching, or can be switched separately in breakaway mode.The switcher can be easily integrated with the FSR HuddleVU collaboration systems and furniture solutions. The unit can be easily operated from the front panel, or remotely with a Flex Control System (available separately). - Four HDMI, one DisplayPort, one DVI-I connector (digital only), and one RGB/YPbPr (HD-15) inputs
- Each source input is automatically scaled to match the optimal output resolution
- Seamless rapid switching between any of the seven inputs
- Each video input also has an unbalanced stereo audio input via captive screw terminals
- Easy-to-use front panel control, Web GUI, IR, RS-232, and IP control as well
- Can be controlled via the FLEX Touch Panel Control System (available separately) with pre-made templates
- Height of 1 RU, 19" width standard enclosure, rack-mountable design
- Suitable for applications in classrooms, boardrooms/conference rooms, collaboration and huddle areas, and houses of worship
In the Box FSR DV-MFSS-71 7x1 Multi-Format Seamless Scaling Switcher Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR DV-MFSS-71 7x1 Multi-Format Seamless Scaling Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DV-MFSS-71 Specs | | | Inputs | HDMI & DisplayPort:
Supports HDMI 1.4 8/10/12-bit Deep Color modes
Resolutions up to 4K 2160p (3840 x 2160) @ 30 Hz (300 MHz)
Supports MHL2.0 input resolution up to 1080p
DVI operates up to 165 MHz (up to UXGA @ 60 Hz)
HDMI supports uncompressed audio channels (7.1 @ 192 kHz)
HDMI supports Lip Sync
Supports embedded stereo audio on DisplayPort
DVI-I Input:
Resolutions up to 2560 x 1600 @ 60 Hz
DisplayPort v1.2a complaint (supports HBR)
Two-channel L-PCM & IEC 61937 compressed audio formats
VGA / RGB / YPbPr Input:
Up to 1920 x 1440 @ 60 Hz | | Color Space | YUV, RGB | | Conversion | Converts the input signal to the output EDID | | HDMI Output | 4K (3840 x 2160) @ 30 Hz
1920 x 1080 @ 60 Hz
1900 x 1200 @ 60 Hz
1600 x 1200 @ 60 Hz
1280 x 800 @ 60 Hz
1280 x 720 @ 60 Hz
1024 x 768 @ 60 Hz
HDMI embedded audio output | | Audio Output | Supports multi-channel coaxial
Supports stereo analog audio output | | | | Video Input | 4 x HDMI Type A, female
2 x DisplayPort (full size) 20-pin, female
1 x 15-Pin VGA, female | | Video Output | 1 x HDMI Type A, female | | Audio Input | 7 x Program audio input via captive screw terminals
1 x Mix audio input via captive screw terminals | | Audio Output | 1 x Stereo via captive screw terminals
1 x Optical | | RS-232 | 1 x DB-9, female | | LAN | IP Control: 1 x RJ-45 | | USB | Type A 4-pin, female | | AC Power | 1 x 12 V
Maximum Current: 1.5 A, 110 to 240 VAC adapter | | | | Power Input | 110 to 240 VAC | | Maximum Power Consumption | 15 W | | | | Dimensions (W x H x D) | 17.3 x 1.7 x 10.7" (440.0 x 43.5 x 272.0 mm) | | Weight | 7.3 lb (3.3 kg) |
