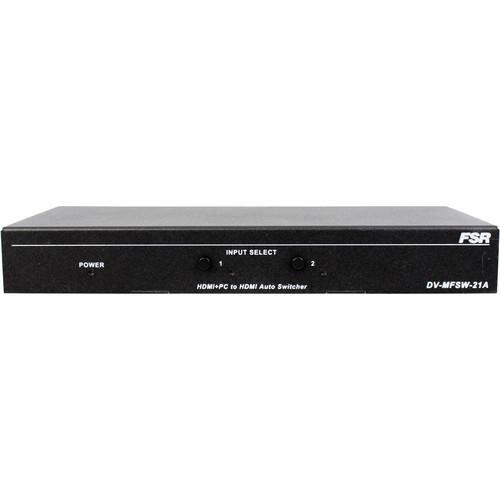

Product description The DV-MFSW-21A 2x1 Digital Video Switcher from FSR features one HDMI output supporting resolutions up to 4K x 2K at 30 Hz and one VGA (HD-15) input supporting up to 1920 x 1200 at 60 Hz. The HD-15 input is paired with a stereo audio input on a 3.5mm mini stereo connector. It features 4-way control and front panel push buttons, screw terminal contact closures with LED feedback, RS-232 serial control. With its auto-sense technology, the switcher will switch when the current video source being displayed is turned off either via keyboard function buttons or from signal loss. - 2 x 1 switcher with one HDMI and one VGA (HD-15) input and HDMI output
- HDMI supports resolutions up to 3840 x 2160 at 30 Hz
- VGA (HD-15) supports resolutions up to 1920 x 1200 at 60 Hz
- Analog video converted to HDMI with embedded audio
- Auto-sense automatic switching technology
- Front panel push button local control
- Contact closure with 12V Lamp/LED output (at 100mAh when active)
- Serial (RS-232) remote control
- Applications: boardrooms, classrooms, command and control centers, PoP/PoP kiosks, digital signage, and collaboration systems such as HuddleVu
In the Box FSR DV-MFSW-21A 2x1 Digital Video Switcher Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR DV-MFSW-21A 2x1 Digital Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DV-MFSW-21A Specs | Resolution | HDMI: Maximum 3840 x 2160 at 30 Hz
VGA: Maximum 1920 x 1200 at 60 Hz | | Video Input | 1 x HDMI Type A 19-pin, female
1 x VGA HD-15 15-pin, female | | Video Output | 1 x HDMI Type A 19-pin , female | | Audio Input | 1 x 3.5 mm mini stereo jack | | RS-232 | 3-pin pluggable screw terminal | | Contact Closure | 5-pin pluggable screw terminal | | AC Power | External 12 VDC power supply with locking connector | | Power Input | 110 to 240 VAC | | Power Consumption | 12 VDC, 0.3 A | | Dimensions (W x D x H) | 7.5 x 3.3 x 1" (19.1 x 8.3 x 3 cm) | | Weight | 1 lb (0.5 kg) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 10.0 x 6.7 x 3.2" |
