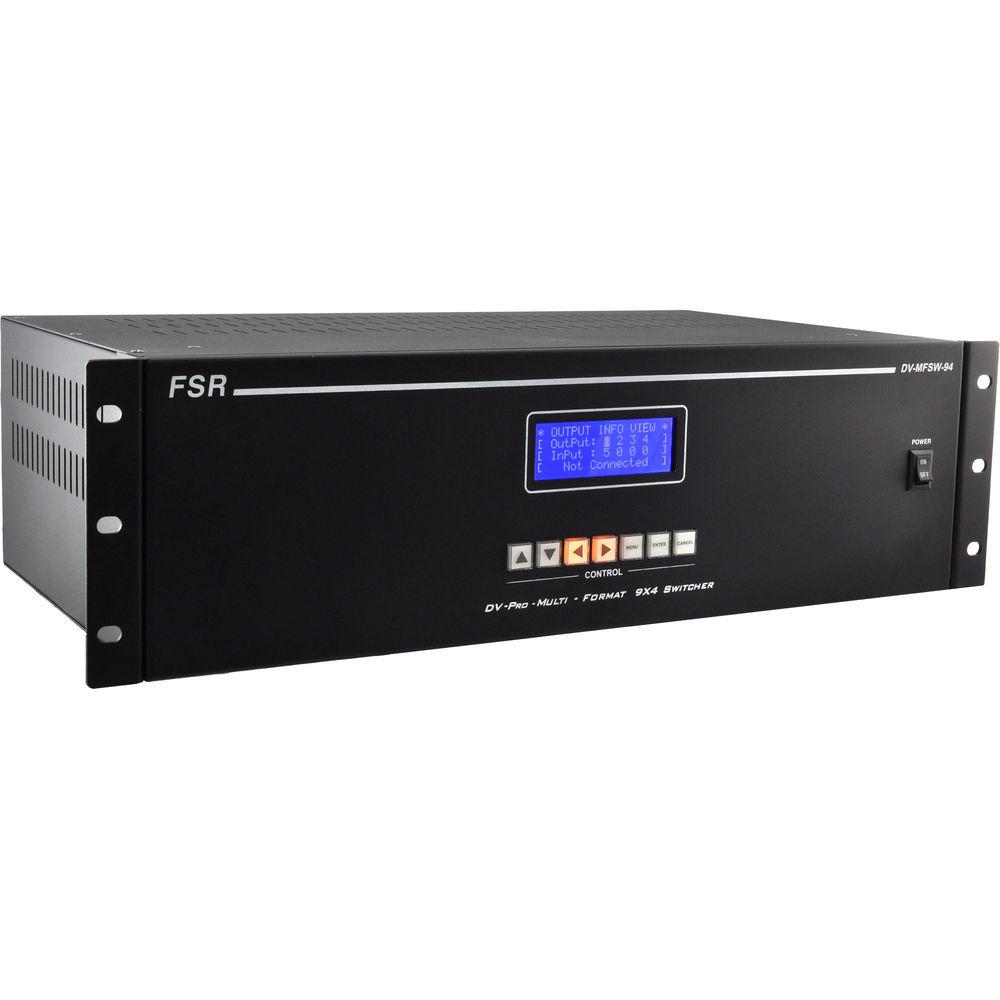

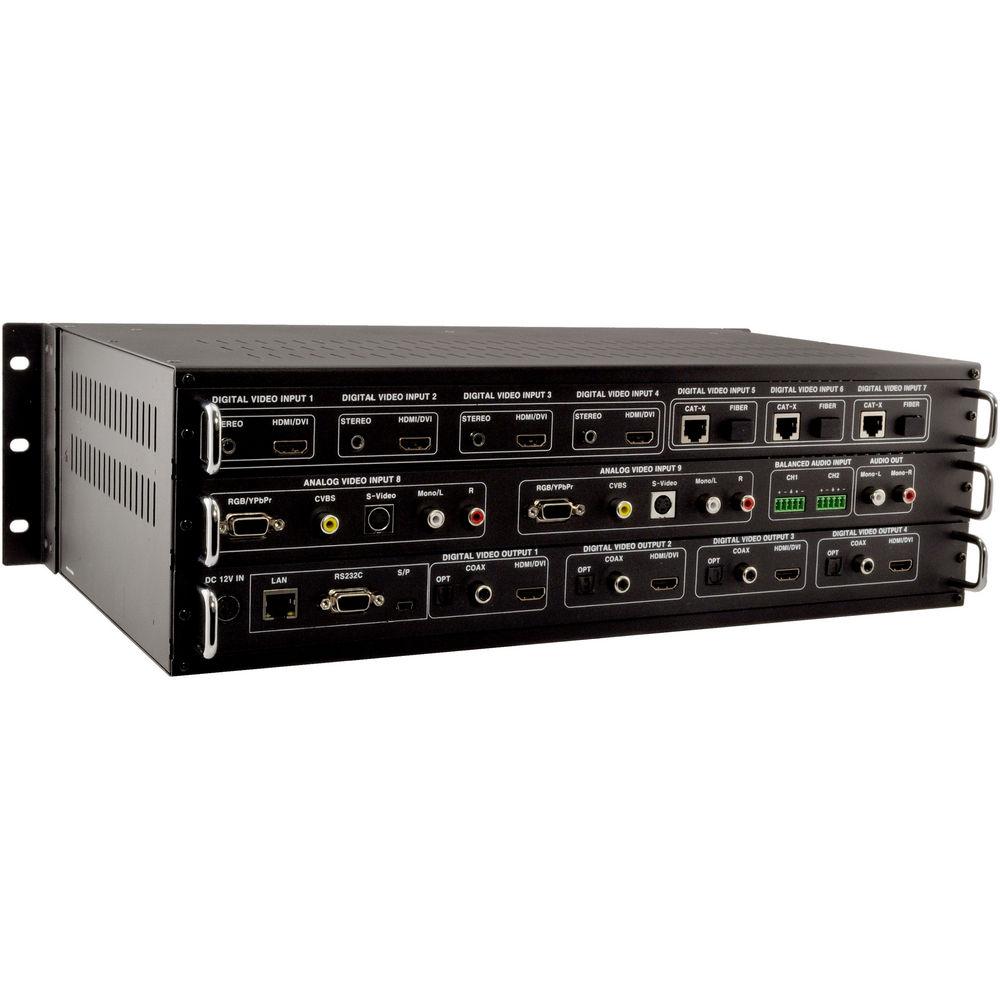

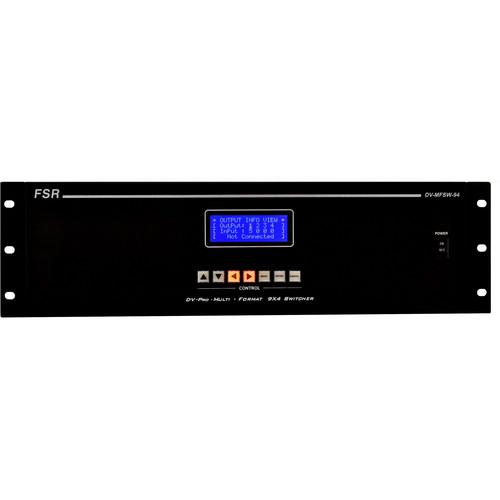

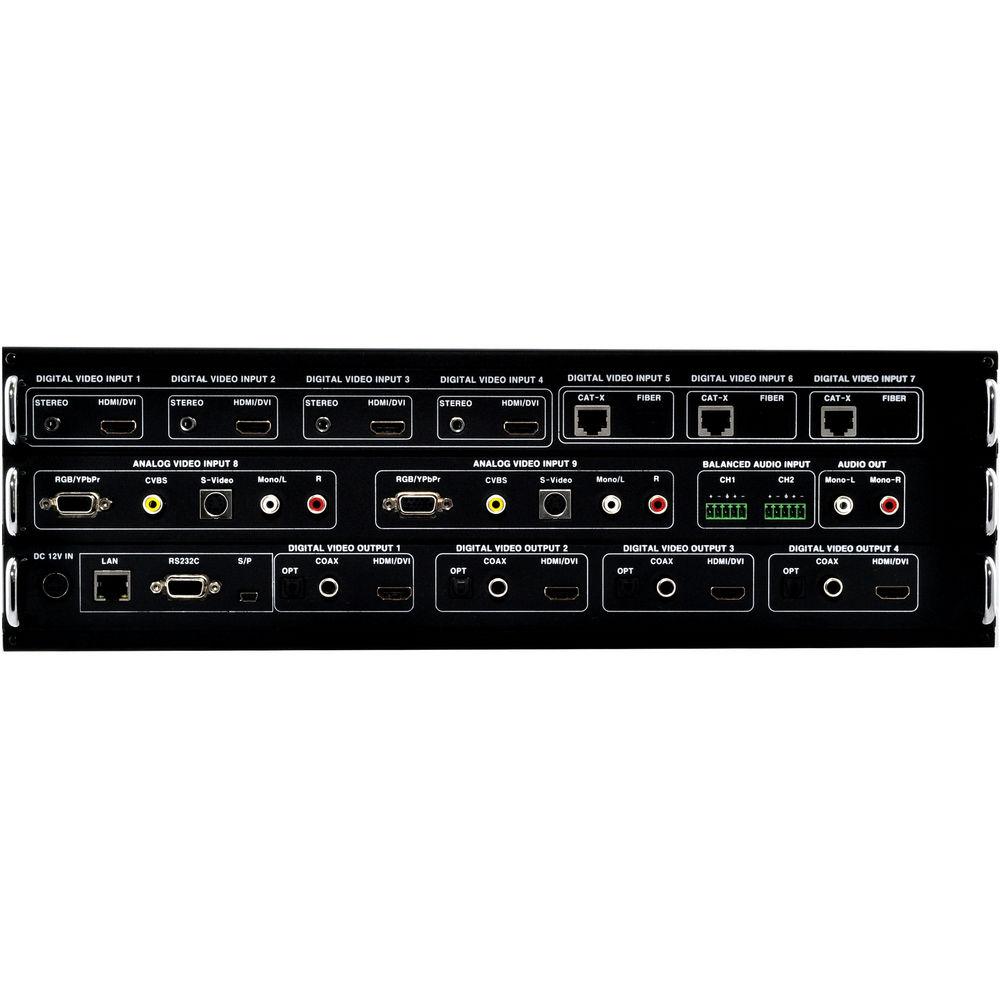

Product description The DV-MFSW-94 9 x 4 Presentation Matrix Switcher from FSR is a hybrid matrix switcher that allows both analog and digital video sources to be reliably routed to as many as 4 digital displays. This compact, 3-RU unit will accept up to 9 sources and 4 HDMI outputs.This matrix switcher was designed to reduce the integration challenges that have become a norm in deployment of digital display systems. The connection between sources and displays are rife with known and unknown pitfalls that need to be addressed by system designers. Cable length is critical as is the ability to accept a wide variety of signal types and resolutions and then reliably display them at common endpoint. - Supports HDMI V1.3 and HDCP V2.1
- Input Diversity: VGA, HDMI, DVI, YUV, S-Video, or composite video
- Scaled Output: Digital video scaled for each display device
- Independent audio and video matrixing
- 3 Fiber or CAT-x Inputs: Use distant sources without extender clutter
- Additional 5th Audio Output: Sound systems can be supplied with analog audio from any source
- IP and RS232 controllable
- Requires 3U of rack space
- Applications: Video wall systems, large LED sign boards, medical imaging equipment, TV broadcast stations, auditoriums, conference rooms, video systems in places of worship
In the Box FSR DV-MFSW-94 9 x 4 Presentation Matrix Switcher Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR DV-MFSW-94 9 x 4 Presentation Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DV-MFSW-94 Specs | | | Video | 4 x Digital video, 2 x Analog video
Port Type: HDMI F for digital video, DB-15, S-Video, 1 x RCA for analog video | | Extender | For Video: 3 x HDMI CAT-x Extender DV-HXT-1 Cable
Port Type for Video: 2 x Fiber optic LC, CAT6
For Audio: 3 x HDMI CAT-x Extender DV-HXT-1 Cable
Port Type for Audio: 3 x Fiber or CAT6 Cables sold separately | | Audio Input | 11
Port Type: 4 x 3.5 mm TRS, 4 x HDMI, 2 x Phoenix, 2 x RCA | | | | Digital Video | 4 x Digital video
Port Type: HDMI F | | Audio Output | 5 x Audio outputs
Port Type: 4 x RCA/Toslink, 1 x RCA (L&R) | | | | Signal Input | For Digital Video: DVI, HDMI
For Analog Video: RGB up to UXGA, YUV up to 1080p, YC S-Video, CV composite
For Extender (Video): DVI/HDMI
For Audio Inputs: Analog stereo, HDMI audio, Balanced audio, L&R unbalanced audio
For Extender(Audio): HDMI audio | | Signal Outputs | For Digital Video: DVI, HDMI
For Audio Outputs: SPDiF, L&R unbalanced audio | | Power | 12 VDC, 6.6 A, 25/35 W | | Dimensions (W x L x H) | 3 U, 17.1 x 10.6 x 3.4" (435.0 x 270.0 x 88.0 mm) | | Weight | 17.5 lb (7.9 kg) |
