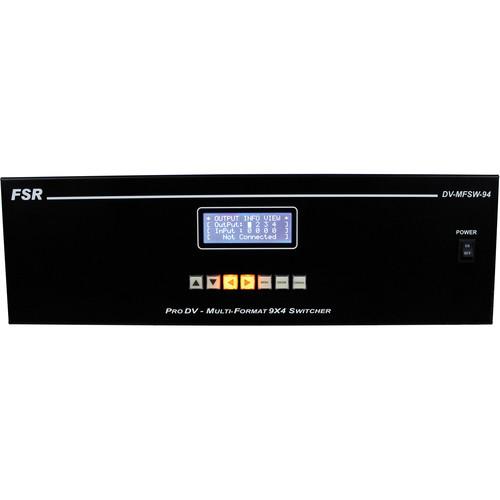

User Manual for FSR DV-MFSW-94 9x4 Presentation Matrix Switcher Click to enlarge the picture
Contents of the user manual for the FSR DV-MFSW-94 9x4 Presentation Matrix Switcher
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
|
User manual for the FSR DV-MFSW-94 9x4 Presentation Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description With the FSR DV-MFSW-94 9x4 Presentation Matrix Switcher 9 inputs can be routed to up to four HDMI/DVI outputs. Digital inputs include four HDMI and three CAT/Fiber inputs. The unit will also accept two analog inputs with the options of using VGA, Component, Composite, and S-Video for each input. Each HDMI input has a 3.5mm jack for analog audio and the analog channels have stereo RCA inputs. Audio can also be input via separate balanced audio input. Any of the inputs can be routed to an output, and audio can either be embedded in the HDMI out or sent separately via optical Toslink or coaxial S/PDIF. Audio can also be routed to a separate RCA output for connecting to a sound system.HDMI, while featured almost universally on consumer and professional digital A/V equipment, can be an obstacle for integration because of its limitations. To mitigate these limitations, this matrix switcher is HDCP 2.1 compliant, and will pass through HDCP and EDID information from any of its inputs to its outputs. The unit will also accept video over CAT and Fiber cables. These cables can be routed over longer distances than HDMI without the need for powered re-clocking amplifiers.The unit can be controlled via the front panel interface, the RS-232 interface, or with IP from a PC. A USB port on the rear of the unit is used for future firmware upgrades which can be done by the user. - Features
-
- HDMI V1.3
- HDCP V2.1
- VGA, HDMI, DVI, YUV, S-Video, and Composite Video inputs
- Scaled outputs
- True independent audio and video matrixing
- 3 fiber or category inputs for long cable runs
- Additional 5th audio output
- IP an RS232 controllable
- 3 RU rack space chassis
In the Box FSR DV-MFSW-94 9x4 Presentation Matrix Switcher DC Power Supply AC Power Cord USB Cable RJ45 Cable DB-9 Cable Rack Mounting Hardware Set 5-Position Screw Down Terminal Plugs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR DV-MFSW-94 9x4 Presentation Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR DV-MFSW-94XT Specs | Inputs | 4 x DVI/HDMI
Resolutions: PC (up to WUXGA), HDTV (up to 1080p)
DVI 1.0 / HDMI 1.3v, HDCP
Stereo Audio Max 1 V rms
3 x CAT/Fiber Optical Inputs
Resolutions: PC (up to WUXGA), HDTV (up to 1080p)
HDMI 1.3v, HDCP
CAT (max 50 m)
2 Core Optical (Multi, Single Mode Fiber Optic Cable)
2 x Analog Inputs:
12-bit 170 MSPS ADC
VGA to WUXGA and 1080p / 60 Hz
Signal Format: RGB, YPbPr, CVBS, S-Video
Supporting Resolutions: RGB (up to WUXGA), YPbPr (480p - 1080p), CVBS/S-Video (NTSC/PAL)
2-Channel Balanced Audio Inputs:
Route to stereo audio output or embed in HDMI output Signals | | Outputs | 4 x HDMI/DVI Outputs:
Resolutions: PC (up to WUXGA), HDTV (up to 1080p)
1 x Optical Toslink, Coaxial S/PDIF Digital Audio
1 x Stereo RCA:
Audio Max 1 V rms | | Control | RS-232C 9600 - 115200 Bps
LAN, TCP/IP TELNET | | Power | 12 VDC, 6.6 A, 25 W / 35 W | | Dimensions | 17.1 x 10.6 x 3.5" / 435 x 270 x 88 mm | | Weight | 15.8 lb / 7.2 kg | | | | Package Weight | 19.45 lb | | Box Dimensions (LxWxH) | 19.8 x 16.5 x 8.0" |
