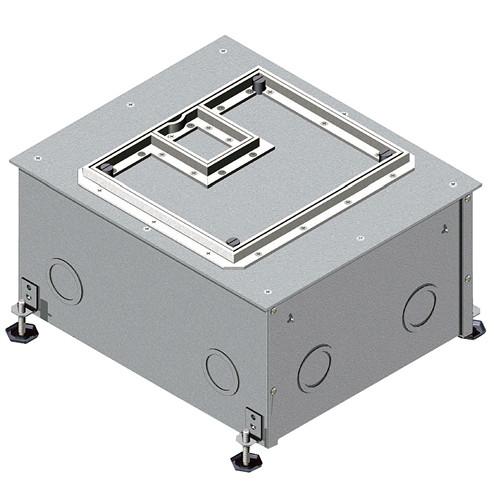

User Manual for FSR FL-500P-3 Floor Box Click to enlarge the picture
Contents of the user manual for the FSR FL-500P-3 Floor Box
- Product category: Wall Plates & Installation Boxes FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Wall Plates & Installation Boxes
|
User manual for the FSR FL-500P-3 Floor Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The FSR FL-500P Floor Box has been specifically designed to handle the rigors and demands of everything from courtrooms, educational institutions, religious institutions as well as public venues. The FL-500P features a lift-off top that provides complete and total access to the interior connections which can range from telecommunications to simple audio and video connections.When access is not required, the box is completely sealed to permit extensive and unencumbered foot traffic to pass over it. The only visible signs of its installation will be the minimal carpet edging. Available in either brass or aluminum edging, the low-profile setup is both UL and CUL approved. When this box is used on grade, it should be encased in concrete to prevent contact with the grade. To ensure compliance, we recommend using the FSR Pour Pan Accessory. The FSR Pour Pan can handle trickier installations whether on soil, rock, gravel, etc. The Pan comes with leveling feet which prevent shifting during the pouring of concrete. Note: Does not come with the cover (sold separately). This box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation - Boxes and covers are sold separately - These boxes are designed for the new UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes - 11-gauge steel temporary construction cover included
- 11-gauge finished steel cover with choice of carpet edging
- Mitered brass or aluminum carpet edging 0.5" or 0.25" high (specify when purchasing)
- Stainless steel compression latches
- Lift-off full access door
In the Box FSR FL-500P-3 Floor Box (3" Depth) Box Bottom Internal Bracket Construction Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR FL-500P-3 Floor Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR FL-500P-3-B Specs | Size | Box: 10 x 12 x 3" (25.4 x 30.5 x (7.6cm) | | Weight | 12.25 lbs (5.6kg) | | Knockouts | Total of Twelve: Either 1 or 1.25" (2.54 or 3.2cm) Specify when ordering | | | | Package Weight | 14.2 lb | | Box Dimensions (LxWxH) | 14.4 x 12.8 x 5.2" |
