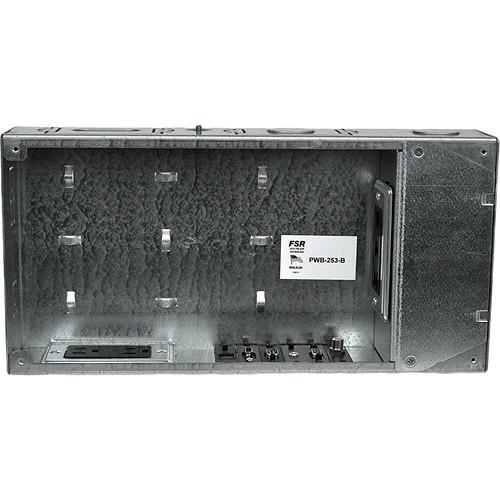

User Manual for FSR Flat Panel Display Wall Box with Decora & Duplex Cover Plates Click to enlarge the picture
Contents of the user manual for the FSR Flat Panel Display Wall Box
- Product category: Wall Plates & Installation Boxes FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Wall Plates & Installation Boxes
|
User manual for the FSR Flat Panel Display Wall Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The 3", black Flat Panel Display Wall Box with Decora & Duplex Cover Plates from FSR is an installation accessory for housing wall-mounted plasma/flat-panel displays. It installs easily, allowing your screen to be flush with the wall. It is specifically designed to install in 2" x 3" stud walls and is suitable for use at schools, airports, conference centers, arenas, museums, and general meeting facilities.
This Flat Panel Display Wall Box provides a neat and secure environment for audio, video, control, and power wiring connections; for a clean finish, the connectors are hidden behind a cover. The unit comes ready to install, and has three single gang knockouts and one IPS knockout to mount up to six single IPS plates (sold separately). A removable pass-through enclosure provides an additional single gang knockout and can be used to isolate cables that the installer may need to pass through the backbox. One steel duplex cover plate and one steel Decora cover plate are included for convenience, and to ensure proper fit in the shallow back box. - For shallow (3" stud) walls
- Rugged 16-gauge steel back box with 1/16" front cover
- Three single knockouts and one IPS knockout to mount up to six single IPS plates (sold separately)
- Removable pass-through enclosure for isolating cables that need to go through the back box via the single-gang knockout
- Connectors are hidden behind an attractive cover
In the Box FSR Flat Panel Display Wall Box with Decora & Duplex Cover Plates (3", Black) Duplex Cover Plate Decora Cover Plate AC Back Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR Flat Panel Display Wall Box with Decora & Duplex Cover Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR PWB-253-BLK Specs | Material | 16-gauge steel | | Dimensions | Cover: 7.50 x 14.75 x 0.05" / 19.1 x 37.5 x 0.1 cm
Box: 7.10 x 14.25 x 2.88" / 18.0 x 36.2 x 7.3 cm | | Weight | 5.9 lb / 2.7 kg | | | | Package Weight | 7.05 lb | | Box Dimensions (LxWxH) | 17.0 x 9.9 x 6.0" |
