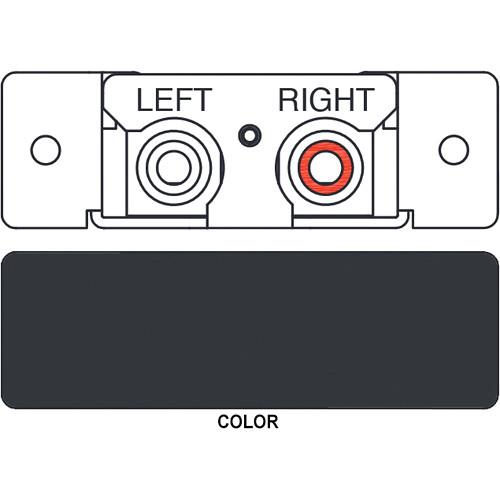

Product description The black IPS A223S 2-RCA Red & White to Screw Terminals Audio Module from FSR is a single height balanced audio connector insert that allows for the connection of 2 labeled red and white RCA inputs to captive screw terminals. The insert module can be installed in any compatible IPS wall plate opening or under table mount.
The IPS-A223S is a member of the IPS family of inserts. Components in this series can be combined to create custom interconnect solutions and can be mounted on walls or under tables. The IPS-A223S is suited for use in classrooms, conferences rooms, lecterns, lobbies, houses of worship, airports, hotels, and hospitals, among many other possible uses and applications. - Labeled
- Labeled for input clarity.
- Audio Insert
- This audio insert allows for connection between 2-RCA (red and white) to Captive Screw Terminals / Balanced
- Compatibility
- The insert can be installed in any compatible IPS wall plate opening or under table mount.
- Intelligent Plate Solutions (IPS)
- IPS series designed to meet many audio-video interface applications and can be combined to create custom solutions that mount on the wall or under tables.
- Multiple Applications
- Suited for use in classrooms, conferences rooms, lecterns, lobbies, churches, airports, hotels, and hospitals applications.
In the Box FSR IPS-A223S 2-RCA, Red & White to Captive Screw Terminals / Bal (Labeled, Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR IPS-A223S 2-RCA, Red & White to Captive Screw Terminals Bal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR IPS-A223S-LB-BLK Specs | Connectors | 2 x RCA to Captive Screw Terminals / Balanced | | Dimensions (W x H x D) | 2.19 x 0.69 x 1.70" (5.53 x 1.74 x 4.31 cm) | | Weight | 0.05 lb (0.23 kg) |
