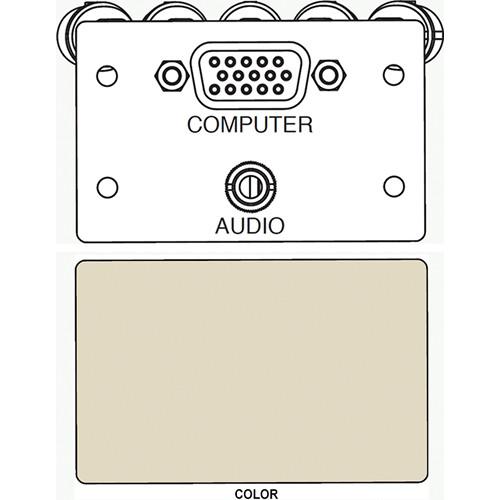

User Manual for FSR IPS-AV921D A V HD-15 to 5-BNC & 3.5mm Stereo to Solder Cup Insert Click to enlarge the picture
Contents of the user manual for the FSR IPS-AV921D A V HD-15 to
- Product category: Wall Plates & Installation Boxes FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Wall Plates & Installation Boxes
|
User manual for the FSR IPS-AV921D A V HD-15 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The ivory IPS-AV921D A/V HD-15 to 5-BNC & 3.5 Stereo to Solder Cup Insert from FSR is an audio/video insert that allows for connection between an HD-15 female to 5-BNC with color coded tails and 3.5mm stereo to solder cup connections. This labeled insert can be installed in any compatible IPS wall plate opening or under table mount. The IPS-AV921D is a member of the IPS series line of interconnect solutions designed for numerous audio video interface application needs. IPS units can be combined to create custom solutions that mount on the wall or under tables. The IPS-AV921D module is well suited for use in classrooms, conference rooms, lecterns, lobbies, houses of worship, airports, hotels, hospitals, clubs, and stadiums among many other possible uses and applications. - Audio/Video Insert
- This audio/video insert allows for connection between an HD-15 female to 5-BNC tails with a 3.5 mm stereo to a solder cup.
- Compatibility
- The insert can be installed in any compatible IPS wall plate opening or under table mount.
- Intelligent Plate Solutions (IPS)
- IPS series products designed to meet virtually any audio-video interface application need and can be combined to create custom solutions that mount on the wall or under tables.
- Multiple Applications
- This solution is well suited for use in classrooms, conference rooms, lecterns, lobbies, houses of worship, airports, hotels, hospitals, and pool halls among many other possible uses and applications.
In the Box FSR IPS-AV921D A/V HD-15 to 5-BNC & 3.5mm Stereo to Solder Cup Insert (Labeled, Ivory) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR IPS-AV921D A V HD-15 to 5-BNC & 3.5mm Stereo to Solder Cup Insert in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR IPS-AV921D-IVO-LB Specs | Inputs/Outputs | 1 x HD-15 female to 5 x BNC tails (Color coded)
1 x 3.5 mm stereo to 1 x solder cup | | Dimensions (W x H x D) | 2.19 x 1.39 x 5.25" (5.56 x 3.53 x 13.33 cm) tails included | | Weight | 0.15 lb (0.68 kg) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
