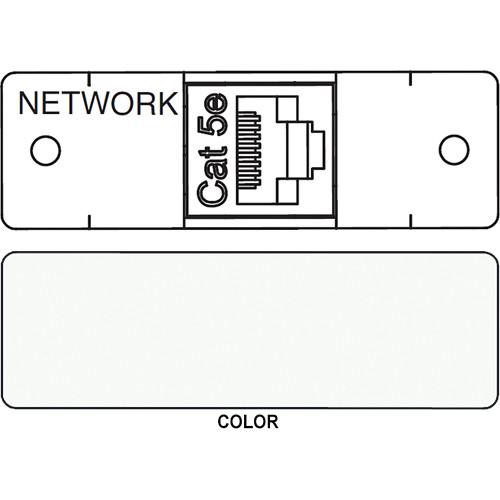

User Manual for FSR IPS D712S RJ-45 to RJ-45 Bulkhead Data Connection Insert Click to enlarge the picture
Contents of the user manual for the FSR IPS D712S RJ-45 to RJ-45
- Product category: Wall Plates & Installation Boxes FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Wall Plates & Installation Boxes
|
User manual for the FSR IPS D712S RJ-45 to RJ-45 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The white IPS-D712S RJ-45 to RJ-45 Bulkhead Data Connection Insert from FSR is a single height voice and data connection module that allows for the connection of 1 - RJ45, Cat 5e to a RJ-45 bulkhead. The labeled network insert can be installed in any compatible IPS wall plate opening or under table mount.
The IPS-D712S is a member of the IPS family of inserts. Components in this series can be combined to create custom interconnect solutions and can be mounted on walls or under tables. The RJ-45 Cat 5e bulkhead insert module is suited for use in classrooms, conferences rooms, lecterns, lobbies, houses of worship, airports, hotels, and hospitals, among many other possible uses and applications. - Labeled
- Labeled for input clarity.
- Voice / Data Network Connector Insert
- This network insert allows for connection between 1 x RJ-45 , to a RJ-45 Cat 5e bulkhead connection.
- Compatibility
- The insert can be installed in any compatible IPS wall plate opening or under table mount.
- Construction
- The insert connectors are mounted to steel plates.
- Intelligent Plate Solutions (IPS)
- IPS series designed to meet many audio-video interface applications and can be combined to create custom solutions that mount on the wall or under tables.
- Multiple Applications
- Suited for use in classrooms, conferences rooms, lecterns, lobbies, houses of worship, airports, hotels, and hospitals applications.
In the Box FSR IPS D712S RJ-45 to RJ-45 Bulkhead Data Connection Insert (Labeled, White) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR IPS D712S RJ-45 to RJ-45 Bulkhead Data Connection Insert in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR IPS-D712S-LB-WHT Specs | Number of Connectors | 1 x RJ-45 to 1 x RJ-45 bulkhead | | Type of Connector | RJ-45 Network - Cat 5e | | Dimensions (W x H x D) | 2.19 x 0.69 x 1.16" (5.56 x 1.75 x 2.95 cm) | | Weight | 0.05 lb (22.68 g) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
