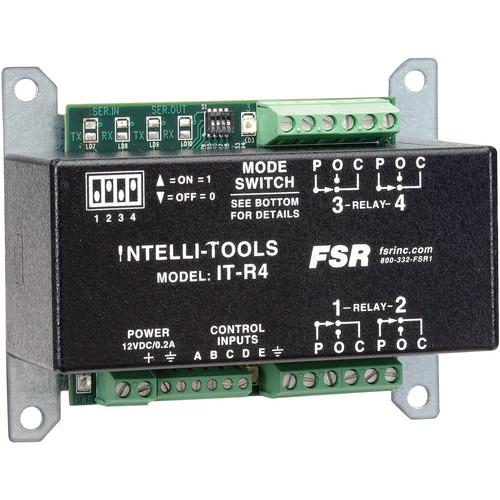

Product description The FSR IT-R4 Relay Module can be user-configured as a switch or relay. Typical uses include projection screen control, logic level control, speaker muting or relay remote control. - One module does the work of many
- Quick easy setup and configuration. Four user configured relays are controlled via five input ports that are designed to accept either a switch contact closure or logic level input.
- High quality relays. A four-position configuration dip switch sets the operating behavior of the relays. Each relay can be set for different operating modes; On, Off, pulsed for a ¼ of a second, or toggled, which changes the relay to the opposite state.
- Applications Include:
Shade and screen control (via relay interface)
Logic level control
Relay contact closure
Speaker muting
Relay remote control Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR IT-R4 Relay Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR IT-R4 Specs | Maximum Switching Current | 5A (NO)/3A (NC) | | Switching Capacity | NO: 250VAC, 150 W (DC Resistive)
NC: 150VAC, 90 W (DC Resistive) | | Input Voltage | Logic High range: 2.0 - 24V
Logic Low range: -1.0 - +1.0V | | Input Impedance | 7k | | Connectors | Screw Terminal | | Power Supply | 12 VDC @ 160mA (Not Included) | | Dimensions (LxWxH) | 4.25 x 3.44 x 1.57" (10.8 x 8.7 x 4 cm) | | Weight | 0.9 lbs (0.4 kg) |
