FSR IT-R4S Relay Module

Search your instruction manual in PDF to download

User Manual for FSR IT-R4S Relay Module

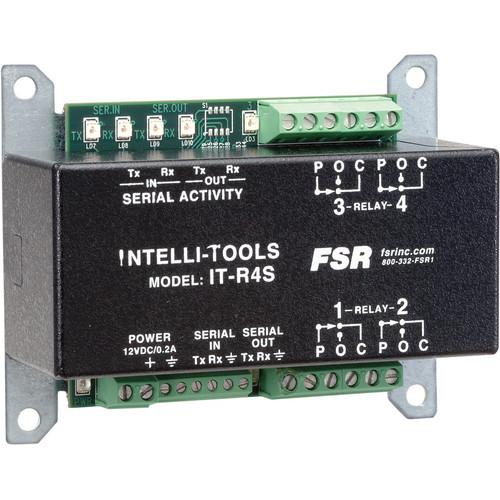

Click to enlarge the picture
FSR IT-R4S Relay Module Contents of the user manual for the FSR IT-R4S Relay Module
  • Product category: Wall Plates & Installation Boxes FSR
  • Brand: FSR
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for FSR Wall Plates & Installation Boxes

User manual for the FSR IT-R4S Relay Module contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any FSR product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!



Product description

The FSR IT-R4S Relay Module is ideal for projection screen control, relay remote control, speaker muting or any environment where RS-232 control of switching via the 4 internal single-pole, double-throw relays is desired. "Daisy chain" capability allows connection of the IT-R4S with additional modules to control other RS-232 devices. It is powered by a 12 VDC power supply (purchased separately).
  • Configurable for a variety of applications
  • Can be easily reconfigured "on the fly"
  • Small footprint
  • Quick, easy setup
  • Quick screw terminals
  • Integral mounting plate
  • Simple ASCII command set
  • Units can be "daisy chained" through the serial loop port without sacrificing a port on the control system
  • Relay Status and Power LED indicators
  • RS-232 I/O Port Status LED Indicators
  • Applications Include:
    Shade and screen control (via relay interface)
    Relay contact closure
    Speaker muting
    Relay remote control
In the Box FSR IT-R4S Relay Module
  • 1 Year Manufacturer's Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the FSR IT-R4S Relay Module in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    FSR IT-R4S Specs

    Maximum Switching Current 5A (NO) /3A (NC)
    Switching Capacity NO: 1250VAC, 150 W (DC Resistive)
    NC: 750VAC, 90 W (DC Resistive)
    Connectors Screw Terminal
    Control RS-232
    ASCII Protocol
    Serial looping via In/Out loop ports
    Power Supply 12 VDC @ 160mA (Not Included)
    Dimensions (LxWxH) 4.25 x 3.44 x 1.57" (10.8 x 8.7 x 4 cm)
    Weight 0.9 lbs (0.4 kg)
