User Manual for FSR IT-VCM Stereo Audio Volume Control Module Click to enlarge the picture
Contents of the user manual for the FSR IT-VCM Stereo Audio Volume Control
- Product category: Wall Plates & Installation Boxes FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Wall Plates & Installation Boxes
|
User manual for the FSR IT-VCM Stereo Audio Volume Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

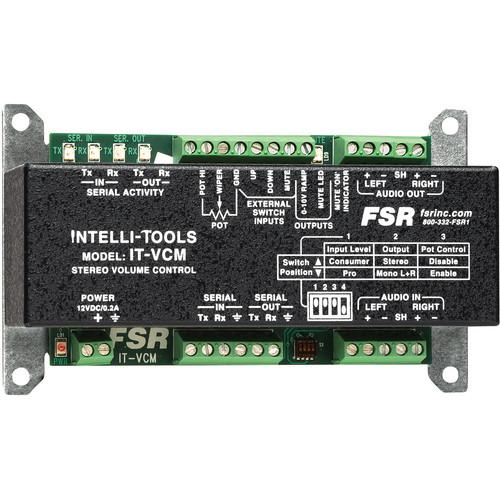

Product description The FSR IT-VCM Stereo Audio Volume Control Module regulates the volume of an audio component remotely. The IT-VCM can be controlled via RS-232 commands, remote switches or a remote potentiometer.
The module, powered from a standard 12VDC power supply (purchased separately), features an input gain switch to bring consumer components up to professional audio levels. It may be used effectively on integrated amplifiers especially those manufactured without a remote control. By "daisy chaining" several modules it is possible to change the volume of a single source in different rooms individually. The IT-VCM is rack-mountable. - Balanced / unbalanced into balanced output
- Stereo in to Mono out switch
- Control volume via RS-232. A remote pot interface is also provided to allow volume control from a user provided potentiometer. The remote pot may be used with the external mute switch.
- O / +12dB consumer boost switch
- Serial activity indicators
- Power and mute indicators
In the Box FSR IT-VCM Stereo Audio Volume Control Module 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR IT-VCM Stereo Audio Volume Control Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR IT-VCM Specs | | | Input | 1 Stereo, balanced or unbalanced | | Connector | Fixed 5 position screw terminal | | Impedance | 20k ohms balanced, 10k ohms unbalanced | | Maximum Input Level | +18dBm (Pro mode), +6dBm (consumer mode) Volume set at -10dB | | Channel Input Level Control | Bass, treble balance, volume, mute | | | | Output | 1 Stereo balanced or unbalanced | | Connector | Fixed 5 position screw terminal | | Impedance | 50 ohm balanced (intended to drive a 600 ohm or higher load) | | Maximum Output Level | +13dBm | | Frequency Response | 20hz-20khz ±0.5dB | | S/N Ratio (Audio) | 80dB | | Power | +12 VDC @ 200 mA maximum | | Power Supply | Universal input IT-PS1 (12VDC 1A supply available separately and will power up to five IT-VCM modules | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 1.0" |
