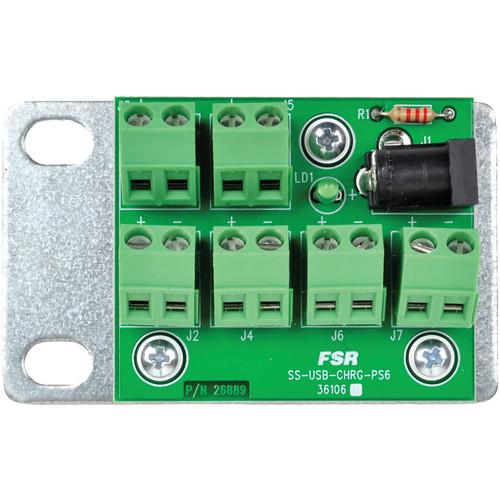

User Manual for FSR Low-Voltage Distribution Board For DC Powered USB Chargers Click to enlarge the picture
Contents of the user manual for the FSR Low-Voltage Distribution Board For DC
- Product category: Wall Plates & Installation Boxes FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Wall Plates & Installation Boxes
|
User manual for the FSR Low-Voltage Distribution Board For DC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The Low-Voltage Distribution Board from FSR is a remote power solution for the FSR IT-USB-CHRG, SS-USB-CHRG and IPS-D717S DC powered USB chargers. It consists of a rack-mounted board to remotely power up to six DC powered USB chargers and a power supply with an AC power cord. The unit provides a means of neatly distributing USB power from an included singlepower supply, eliminating the need for multiple AC wall adapters and messy overloaded power strips. - Two mounting holes are provided to attach to the rear rack rails in a rack
- All connections are via captive-screw terminals
- On-board LED power indicator
In the Box FSR Low-Voltage Distribution Board For DC Powered USB Chargers AC Power Cord Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR Low-Voltage Distribution Board For DC Powered USB Chargers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR SS-USB-CHRG-PS6 Specs | Compatibility | DC Powered USB Charger: IT-USB-CHRG, SS-USB-CHRG, IPS-D717S | | Connectors | 6 x Captive-screw terminal, power output
1 x DC barrel, power input | | LED Indicator | 1 x Power | | Gauge | At 60' / 18 mi: 22 AWG
At 90' / 27 mi: 20 AWG
At 140' / 42 mi: 18 AWG | | Rackmount Space | 1RU | | Power Supply | 15 VDC @ 6 A | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.3 x 7.4 x 1.8" |
