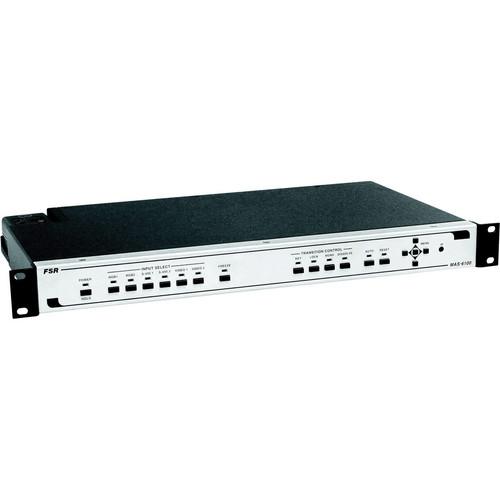

User Manual for FSR MAS-6100 Magellan Multipurpose Video Switcher & Scaler Click to enlarge the picture
Contents of the user manual for the FSR MAS-6100 Magellan Multipurpose Video Switcher
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
|
User manual for the FSR MAS-6100 Magellan Multipurpose Video Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The MAS-6100 Magellan Multipurpose Video Switcher & Scaler from FSR can be used for switching and scaling applications in board rooms, houses of worship, and educational settings, among many other possible uses and settings. It provides scaling from SD, HD, and computer video sources to resolutions that match your projector, plasma display, or HD display. This unit supports NTSC and PAL standards. Resolutions up to 2048 x 2048 or 1080p are supported. Control options include front-panel pushbuttons, RS-232, a separately available remote control, or a Windows-based control panel. This unit also includes a built-in keyer to allow computer-generated text to be superimposed upon a video background. Among other functions, pan and zoom controls are included. - This unit automatically detects incoming resolution
- It includes (1) component and (1) RGB output
- It includes (2) composite, (2) component, (2) S-video, and (2) computer inputs
- This device supports resolutions up to 2048 x 2048
- It supports HDTV resolutions up to 1080p
- Multiple worldwide television standards are supported
- RS-232 and IR controls are both supported
- Image pan and zoom are standard features
- All input types are scaled
- Both chromakey and lumakey are supported
- Image rotation and automatic picture sizing are supported
In the Box FSR MAS-6100 Magellan Multipurpose Video Switcher & Scaler Three-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR MAS-6100 Magellan Multipurpose Video Switcher & Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR MAS-6100 Specs | Video | VIDEO INPUTS
Television Standards: NTSC, PAL, PAL-M, PAL-N, SECAM
Composite Video: 2x via BNC
S-Video: (YC) 2x via 4-pin mini-DIN connector
RGB: 1 component 1x via HD-15 and 1x via 5 BNC
Formats: analog RGBHV, RGBS, RGsB, YPbPr
Sync TTL Level: 10 kOhms, positive or negative
Termination: auto-terminating into 75 Ohms
R-G-B Level Range: 0.5 to 2.0Vp-p
Scan Rate Detection: automatic
PC Resolutions: any up to 2048 x 2048
HDTV Resolutions: any up to 1080p
Maximum Horizontal Scan Rate: 150KHz
Computer Compatibility: PC, Macintosh, workstations VIDEO OUTPUTS
Formats: Analog RGBHV, RGBS, RGsB, YPbPr
RGB/Component: 1x HD-15 Female and
Component: 1x 3-BNC
R-G-B Level: 0.7Vp-p
PC Resolutions: any up to 2048x2048
HDTV Resolutions: any up to 1080p
Vertical Refresh Rate: to 250Hz | | Specifications | Size and Position: automatic or manual
Image Size: user-definable presets
Image Freeze: one video frame
Settings Memory: non-volatile
Zoom Range: variable to 10X zoom
Shrink Range: variable to 10%
Image Mirroring: horizontal and/or vertical
Horizontal Filtering: full digital
Conversion Technology: proprietary
Color Resolution: 24-bit (16.8 million colors)
Digital Sampling: 24-bit, 4:4:4 format
Firmware Memory Flash: upgradeable via RS-232
Video Decoder: 9-bit digital
De-Interlacing (NTSC-PAL) :
Pixel-level motion adaptive
Comb filter decoding adaptive
Film Mode (NTSC) : 3:2 pulldown
Video Adjustments: contrast, brightness, Saturation, hue (NTSC), R-G-B levels | | Controls | Local via front panel buttons & OSD
RS-232 interface via D9 female connector
Infrared interface front panel sensor (remote not supplied | | Power | 100 to 240VAC, 50 to 60Hz, 0.3A | | Dimensions (HxWxD) | 1.72 x 19 x 11" (43.5 x 482.6 x 279.4mm) | | Weight | 10 lbs (4.54kg) |
