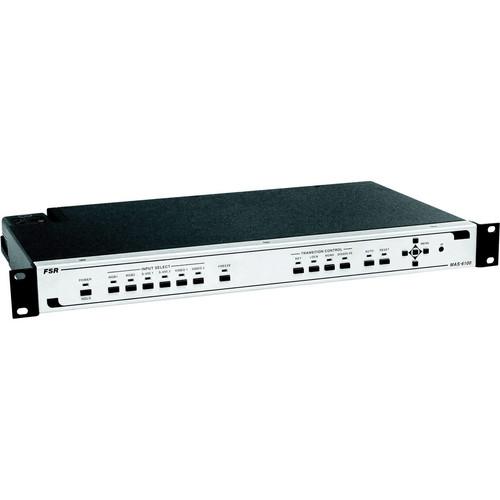

User Manual for FSR MAS-6100A Magellan Multipurpose Video Switcher & Scaler with Audio

Click to enlarge the picture
FSR MAS-6100A Magellan Multipurpose Video Switcher & Scaler with Audio Contents of the user manual for the FSR MAS-6100A Magellan Multipurpose Video Switcher
  • Product category: Routers & Switchers FSR
  • Brand: FSR
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for FSR Routers & Switchers

User manual for the FSR MAS-6100A Magellan Multipurpose Video Switcher contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any FSR product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!



Product description

The MAS-6100A Magellan Multipurpose Video Switcher & Scaler with Audio from FSR can be used for switching and scaling applications in board rooms, houses of worship, and educational settings, among many other possible uses and settings. It provides scaling from SD, HD, and computer video sources to resolutions that match your projector, plasma display, or HD display. This model additionally features a 4x1 stereo audio switcher with balanced output and adjustable delay to keep the audio and video in sync. This unit supports NTSC and PAL standards. Resolutions up to 2048 x 2048 or 1080p are supported. Control options include front-panel pushbuttons, RS-232, a separately available remote control, or a Windows-based control panel. This unit also includes a built-in keyer to allow computer-generated text to be superimposed upon a video background. Among other included functions are pan and zoom controls.
  • This unit automatically detects incoming resolution
  • This model features a 4x1 stereo audio switcher with balanced output and adjustable delay to maintain sync between audio and video
  • It includes (1) component and (1) RGB output
  • It includes (2) composite, (2) component, (2) S-video, and (2) computer inputs
  • This device supports resolutions up to 2048 x 2048
  • It supports HDTV resolutions up to 1080p
  • Multiple worldwide television standards are supported
  • RS-232 and IR controls are both supported
  • Image pan and zoom are standard features
  • All input types are scaled
  • Both chromakey and lumakey are supported
  • Image rotation and automatic picture sizing are supported
In the Box FSR MAS-6100A Magellan Multipurpose Video Switcher & Scaler with Audio
  • Three-Year Warranty Against Defects in Material & Workmanship
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the FSR MAS-6100A Magellan Multipurpose Video Switcher & Scaler with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    FSR MAS-6100A Specs

    Video VIDEO INPUTS
    Television Standards: NTSC, PAL, PAL-M, PAL-N, SECAM
    Composite Video: 2x via BNC
    S-Video: (YC) 2x via 4-pin mini-DIN connector
    RGB: 1 component 1x via HD-15 and 1x via 5 BNC
    Formats: analog RGBHV, RGBS, RGsB, YPbPr
    Sync TTL Level: 10 kOhms, positive or negative
    Termination: auto-terminating into 75 Ohms
    R-G-B Level Range: 0.5 to 2.0Vp-p
    Scan Rate Detection: automatic
    PC Resolutions: any up to 2048 x 2048
    HDTV Resolutions: any up to 1080p
    Maximum Horizontal Scan Rate: 150KHz
    Computer Compatibility: PC, Macintosh, workstations VIDEO OUTPUTS
    Formats: Analog RGBHV, RGBS, RGsB, YPbPr
    RGB/Component: 1x HD-15 Female and
    Component: 1x 3-BNC
    R-G-B Level: 0.7Vp-p
    PC Resolutions: any up to 2048x2048
    HDTV Resolutions: any up to 1080p
    Vertical Refresh Rate: to 250Hz
    Audio AUDIO INPUTS
    Inputs: 4x unbalanced via terminals
    Input Impedance: 10K AUDIO OUTPUTS
    Output Impedance: 50 Ohms
    Output: 1 x balanced via terminals
    Audio Delay: adjustable
    Specifications Size and Position: automatic or manual
    Image Size: user-definable presets
    Image Freeze: one video frame
    Settings Memory: non-volatile
    Zoom Range: variable to 10X zoom
    Shrink Range: variable to 10%
    Image Mirroring: horizontal and/or vertical
    Horizontal Filtering: full digital
    Conversion Technology: proprietary
    Color Resolution: 24-bit (16.8 million colors)
    Digital Sampling: 24-bit, 4:4:4 format
    Firmware Memory Flash: upgradeable via RS-232
    Video Decoder: 9-bit digital
    De-Interlacing (NTSC-PAL) :
    Pixel-level motion adaptive
    Comb filter decoding adaptive
    Film Mode (NTSC) : 3:2 pulldown
    Video Adjustments: contrast, brightness, Saturation, hue (NTSC), R-G-B levels
    Controls Local via front panel buttons & OSD
    RS-232 interface via D9 female connector
    Infrared interface front panel sensor (remote not supplied
    Power 100 to 240VAC, 50 to 60Hz, 0.3A
    Dimensions (HxWxD) 1.72 x 19 x 11" (43.5 x 482.6 x 279.4mm)
    Weight 10 lbs (4.54kg)
