User Manual for FSR MDC-MK1 Scan Converter - Input: Mac and PC Computer Video, Output: Composite and Y C , NTSC PAL, RS-232 Click to enlarge the picture
Contents of the user manual for the FSR MDC-MK1 Scan Converter - Input:
- Product category: Signal Converters FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Signal Converters
|
User manual for the FSR MDC-MK1 Scan Converter - Input: contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

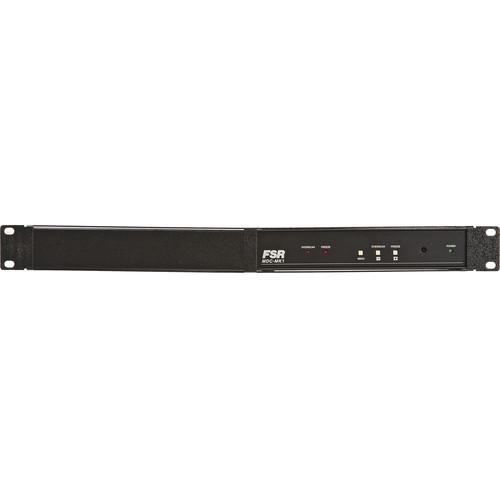

Product description The FSR MDC-MK1 is a scan converter that accepts high resolution computer video from Mac and PC and converts down to NTSC and PAL video. This device outputs through standard composite and Y/C (S-video) connectors enabling easy connection to most video applications. - Resolution Supported
- Supports Mac/PC resolution up to 1600x1200 @ 75 Hz.
- Underscan/Overscan
- Underscan and Overscan functionality allows the user to look at the complete signal or zoom to fill the display.
- Multi-Standard
- This down converter will process signals to NTSC or PAL television standards.
- Zoom and Positioning
- This device has a multi step zoom with horizontal and vertical positioning.
- Freeze
- The MDC-MK1 freezes an image on the screen from the computer input.
- Remote
- Remote functionality is accomplished via RS-232 and hand held remote control.
- Multi-standard
- This unit will output NTSC or PAL, user selectable.
In the Box FSR MDC-MK1 Scan Converter - Input: Mac and PC Computer Video, Output: Composite and Y/C (S-Video), NTSC/PAL, RS-232 AC Adapter IR Remote Rack Mount Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR MDC-MK1 Scan Converter - Input: Mac and PC Computer Video, Output: Composite and Y C , NTSC PAL, RS-232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR MDC-MK1 Specs | Input | Computer Generated Video, Looping, Mac or PC, up to 1600x1200, on an HD-15 connector
Remote, RS-232, on a 9-Pin connector | | Output | Composite video, NTSC or PAL, on a BNC connector
Y/C video, NTSC or PAL, on a 4-Pin connector | | Conversion | High Resolution Computer Generated Video to NTSC and PAL Composite and Y/C Video | | Control | Underscan
Freeze
Menu
Power | | Power Source | 12 VDC on a Supplied AC Adapter | | Dimensions (WxDxH) | Half Rack Size | | Weight | Not Specified by Manufacturer |
