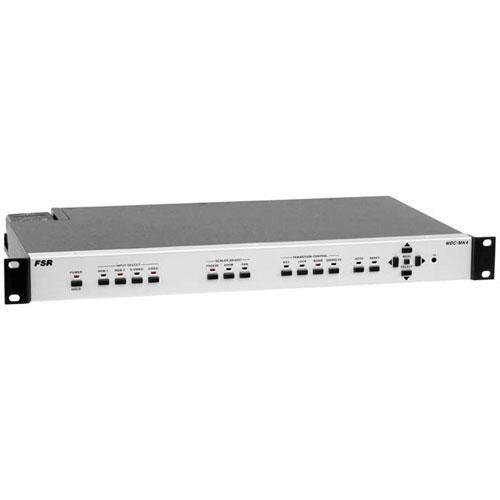

User Manual for FSR MDC-MK4 Magellan Down-Converter Click to enlarge the picture
Contents of the user manual for the FSR MDC-MK4 Magellan Down-Converter
- Product category: Signal Converters FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Signal Converters
|
User manual for the FSR MDC-MK4 Magellan Down-Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The MDC-MK4 Magellan Down-Converter from FSR is a down-converter designed for use in churches, schools, hotels, live events, or any application that requires a high-resolution computer signal to be translated to a standard television feed. Because this unit supports HD and computer input and output, it is also well suited for use as a transcoder in mixed-format applications. Computer resolutions up to 2k x 2k and HD resolutions up to 1080p are supported. Output can be set to NTSC or PAL and will support standard definition composite, S-video, and component video simultaneously. Alternatively, the unit can also output a standalone HD component video feed. The unit can be controlled via front-panel pushbuttons, an on-screen menu system, or remote control software via a serial connection on a Windows PC. Detection of input resolution is automatic and the output signal is sized automatically to the desired output format. Other features include variable pan & zoom, one-button switching, and a multi-line active scaler to maintain color accuracy and eliminate flickering. - Down-Converter & Transcoder
- Use this unit to down-convert or transcode video signals in mixed-format environments.
- Automatic Detection
- Input signal type and resolution is automatically detected and output format is scaled to your designated preference.
- Control
- This unit can be controlled via front-panel pushbuttons, on-screen menu, or RS-232 connectivity.
- Advanced Features
- Other features include pan & zoom functionality, as well as a multi-line active scaler to maintain signal integrity during switching.
In the Box FSR MDC-MK4 Magellan Down-Converter Converter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR MDC-MK4 Magellan Down-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR MDC-MK4 Specs | Inputs | Number: (4)
Type and Format:
(1) HD-15 with loop out RGB
(1) 5 BNC RGB/component
(1) 1 BNC composite
(1) 4-pin DIN S-video
Termination:
Auto-terminating into 75 Ohms
Sync Rate:
Auto-detect
Resolution:
RGB: any up to 2048 x 2048
HD: any up to 1080p
Refresh Rate:
H: up to 150KHz
V: up to 250Hz | | Outputs | Number: (3)
Type and Format:
(1) 1 BNC composite
(1) 4-pin DIN S-video
(1) 3 RCA component | | Level | Video:
0.7Vp-p nominal
0.5 to 2.0Vp-p minimum/maximum
Sync:
TTL positive or negative
Standards:
NTSC, PAL, PAL-M, PAL-N, SECAM
Computer Loop-Thru:
(1) HD-15 female connector | | Operational Modes | Key: Chromakey or Lumakey
Dissolve: PC to/from video | | Genlock | Subcarrier Lock Range:
+/- 200Hz for NTSC Operation
(+/- 250Hz for PAL Operation)
Subcarrier Phase:
+/- 180°
Control Methods Local:
via Front Panel Buttons & OSD
RS-232 Interface:
via D9 Female Connector
Infrared Remote:
via 3rd party remote
Input Expansion Control:
via D-15 Options Connector | | Power | 100 to 240VAC, 50/60, 0.3A | | Dimensions (HxWxD) | 1.72 x 19 x 11" | | Weight | 11 lbs |
