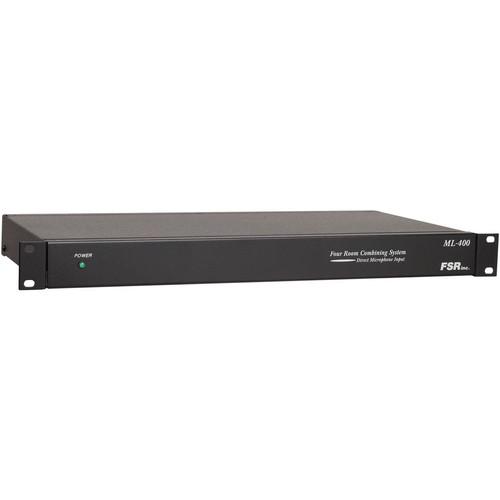

User Manual for FSR ML-400 Ballroom Audio Combining and Routing System Click to enlarge the picture
Contents of the user manual for the FSR ML-400 Ballroom Audio Combining and
- Product category: Audio Conferencing FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Audio Conferencing
|
User manual for the FSR ML-400 Ballroom Audio Combining and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The FSR ML-400 Ballroom Audio Combining System is an intuitive audio routing system that is also well suited for conference rooms, houses-of-worship and more. The system includes the main ML-400 router, 4 wall control plates and a PM-2 power supply.The ML-400 is primarily intended to control audio signal in up to 4 rooms. The unit features microphone and line inputs via euroblock connections, and is capable of combining audio programming, or isolate audio to 4 separate rooms. Routing and volume control over line and microphone signals is easily achieved with the included wall plates. - Combines audio from 2 to 4 rooms in any combination
- Direct microphone input (no mixers required)
- All operating features are controllable from local room areas
- Only 7 wires (control only) connect the wall-plates to the main unit
- Rooms may be independent or mixed to either of 2 busses
- May be used with any power amplifier
- Eliminates patch panels and "homemade" systems
- All audio equipment can be kept in one place
- Robust design and construction insures years of trouble-free operation
In the Box FSR ML-400 Ballroom Audio Combining and Routing System Audio Control Unit 4 x Local Control Plates PM-2 Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR ML-400 Ballroom Audio Combining and Routing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR ML-400 Specs | Input Connections | 3-pin Screw Terminals | | Output Connectors | 3-pin Screw Terminals | | Max Input/Output Gain | Input: 1.6k ohms, mic gain adjust -10dB to +66dB
Output: 600 ohm Transformer coupled | | Signal-to-Noise Ratio | Better than -75dBv | | Phantom Power | +24 VDC | | AC Power Requirements | 120VAC, 50/60Hz at 25W Max |
