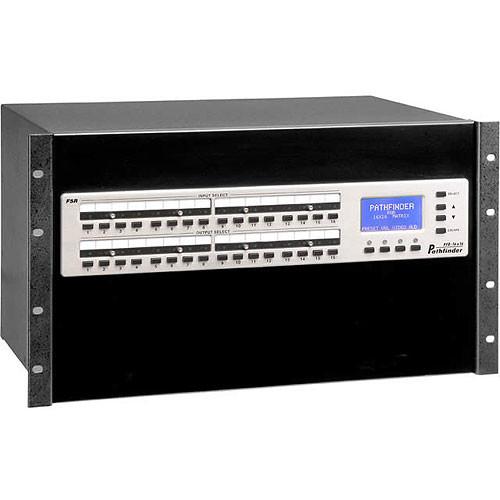

User Manual for FSR PFD-16X16-RGBAEQ Pathfinder 16x16 Equalized RGBHV & Stereo Matrix Switcher Click to enlarge the picture
Contents of the user manual for the FSR PFD-16X16-RGBAEQ Pathfinder 16x16 Equalized RGBHV
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
|
User manual for the FSR PFD-16X16-RGBAEQ Pathfinder 16x16 Equalized RGBHV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The PFD-16X16-RGBAEQ Pathfinder 16x16 Equalized RGBHV & Stereo Audio Matrix Switcher from FSR is a matrix switcher designed for use with RGB video and stereo audio signals. It features (16) inputs and (16) outputs. The system is designed to provide flat signals and adequate bandwidth to all connected components to ensure optimum fidelity. It additionally features cable length equalization to further bolster signal quality. This switcher is well suited for use in video conference rooms, educational facilities, control rooms, monitoring centers, and government institutions, among many other possible applications.
The Pathfinder offers split-mode switching technology, which permits each color channel to be independently switched. This feature also allows the switcher to perform the duties of several units and ensures that its switching capabilities will not become obsolete as video types and resolutions are upgraded in the future.
Control of the unit can be managed via an ASCII command set that will provide complete access to all functions via compatible control systems. Moreover, the switcher includes both RS-232 and IP control ports. This unit may be used as a standalone device, but has also been designed for placement in a standard 19" rack. - Matrix Switcher
- Use this switcher to selectively route multiple signals in conference rooms, home theaters, or educational facilities, among many other possible uses.
- Bandwidth
- This unit offers high and flat bandwidth capacity to guarantee signal integrity with all connected components.
- Split-Mode Switching
- Split-mode switching technology allows the unit to perform the work of several units and ensures future upgradeability.
- Control
- An ASCII command set and both RS-232 and IP ports give you multiple control options.
In the Box FSR PFD-16X16-RGBAEQ Pathfinder 16x16 Equalized RGBHV & Stereo Matrix Switcher Matrix Switcher Three-Year Warranty against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR PFD-16X16-RGBAEQ Pathfinder 16x16 Equalized RGBHV & Stereo Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR PFD-16X16-RGBAEQ Specs | Construction | Metal | | Finish | Black, white | | Inputs/Outputs | 16x16 | | Connectors | Female BNC | | Bandwidth | 200MHz at -3dB | | Gain Flatness | +/- 0.5dB to 150MHz | | Gain | Unity | | Impedance | 75 ohms | | Level | 0.7V nominal, 2V maximum p-p | | Audio | Inputs/Outputs: 16x16
Type: balanced
Connector: 5 position pluggable captive screw terminal
Frequency: 20Hz to 20KHz
HD + Noise: 0.05% at 1KHz at maximum rated output
S/N Ratio: >90dB
Impedance:
input: 10K ohms
output: 50 ohms
Max level (input & output): +22dBm
Input gain switch: 0/ +14dB switchable by input
Input trim range: +/-10dB by input
Output volume range: -45 to +5dB by output | | Sync | Input level: 0.5V to 5Vp-p 4V nominal
Output Level: TTL 2.4V into 75-ohm load
Impedance: 75 ohms
Polarity: same as input | | Dimensions (HxWxD) | Not specified by manufacturer | | Weight | Not specified by manufacturer |
