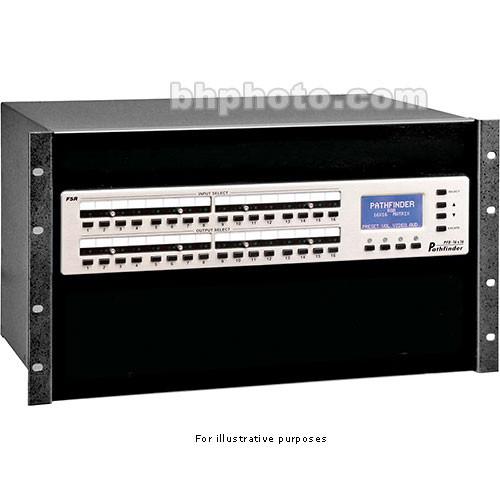

Product description The PFD-16X8-C Pathfinder Composite Matrix Switcher from FSR is a matrix switcher that offers extremely flat signals and high-bandwidth capacity to maintain picture quality. This unit features more than 200MHz at -3dB bandwidth with +/- 1.0 dB flatness. It offers (16) inputs, (8) outputs and supports Composite video.
This unit also features split-mode switching, which allows each color channel to be switched independently. This allows one matrix to perform the duties of several units.
This unit also is also HD compatible with 720p, 1080i, 1080p and 2k by 1k Digital Cinema. Moreover, it features a Genlock input, cable length equalization, protected button labels, 32 global or selective output presets, and RS-232 and IP remote control. - Flat Signals & High-Bandwidth Capacity
- This unit features more than 600MHz@-3dB bandwidth with +/- 1.0 dB flatness.
- Split-Mode Switching
- This unit also features split-mode switching, which allows each color channel to be switched independently. This allows one matrix to perform the duties of several units.
- Audio Controls
- The stereo audio option provides balanced and unbalanced stereo audio switching with independent input trim control and output volume control.
- HD Compatible
- This unit also is also HD compatible with 720p, 1080i, 1080p and 2k by 1k Digital Cinema.
In the Box FSR PFD-16X8-C Pathfinder Matrix Switcher Matrix Switcher Three-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR PFD-16X8-C Pathfinder Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR PFD16X8C Specs | Inputs | x16 Female BNC | | Outputs | x8 Female BNC | | Formats | Composite | | Bandwidth | 200MHz at -3dB | | Gain | Unity | | Impedance | 75Ω | | Level | 0.7V Nominal, 2V Max p-p |
