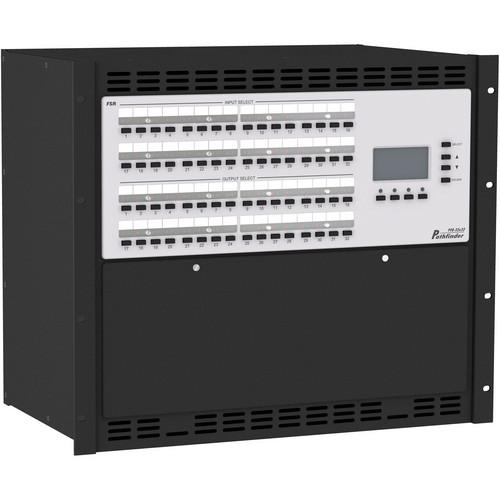

User Manual for FSR PFD-24x24-RGB Pathfinder RGBHV Matrix Switcher Click to enlarge the picture
Contents of the user manual for the FSR PFD-24x24-RGB Pathfinder RGBHV Matrix Switcher
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
|
User manual for the FSR PFD-24x24-RGB Pathfinder RGBHV Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The PFD-24x24-RGB Pathfinder RGBHV Matrix Switcher from FSR is designed to offer 24 inputs and 24 outputs of matrix switching capability for RGBHV signals. It is well suited for use in video & control rooms, educational institutions, government offices, and houses of worship, among many other possible settings and applications.The unit offers high bandwidth capacity to accommodate signals without degradation of clarity or color fidelity. It features split-mode switching to allow each channel to be switched independently. The chassis has been optimized to maximize functionality while minimizing its footprint and the space it occupies in your rack or work area. The unit can be controlled via a set of ASCII commands using its RS-232 or IP connectivity. - Multiple Applications
- This matrix switcher is well suited for use in video & control rooms, educational institutions, government offices, and houses of worship, among many other possible settings and applications.
- Matrix Switching
- This unit is designed to provide 24x24 matrix switching of RGBHV signals.
- Bandwidth
- It features greater than 600MHz @ -3dB bandwidth with +/- 1.0dB flatness to300MHz.
- Split-Mode Switching
- Split-mode switching allows each channel to be switched independently, thereby permitting one physical matrix switcher to perform the duties of several units and ensuring that the switching capabilities are present as video types and resolutions are upgraded in the future.
- Footprint
- Chassis size is optimized based on matrix size and video type to save as much space as possible in your rack or work area.
- Control
- The Pathfinder uses an ASCII command set that gives control systems complete access to all functions. Each unit is equipped with an RS-232 serial port and an IP port.
- Genlock
- It features a genlock input.
- Buttons
- User-customized protected button labels can be used to personalize use of the switcher.
In the Box FSR PFD-24x24-RGB Pathfinder RGBHV Matrix Switcher Three-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR PFD-24x24-RGB Pathfinder RGBHV Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR PFD-24X24-RGB Specs | Inputs/Outputs | 24x24 RGBHV | | Connector | Female BNC | | Bandwidth | 600MHz at -3dB | | Gain Flatness | +/- 1.0dB to 300MHz | | Gain | Unity | | Impedance | 75 Ohms | | Level | 0.7V nominal, 2V maximum p-p | | Input Level | 0.5V to 5Vp-p 4V nominal | | Output Level | TTL 2.4V into 75-Ohm load | | Dimensions (HxWxD) | Not specified by manufacturer | | Weight | Not specified by manufacturer |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
