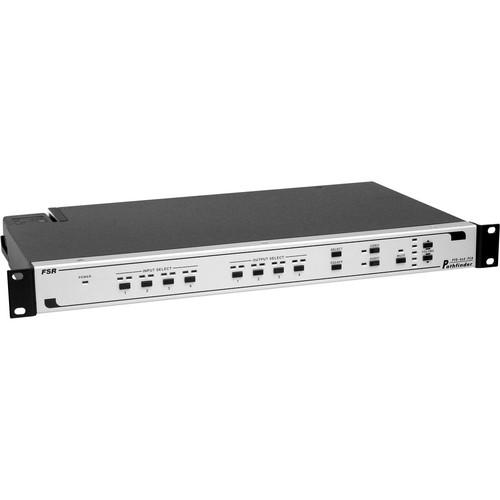

Product description The PFD-4x2-PC Pathfinder Computer Video & Audio Matrix Switcher from FSR is designed to offer 4 inputs and 2 outputs of matrix switching capability for computer video signals. It is well suited for use in video & control rooms, educational institutions, government offices, and houses of worship, among many other possible settings and applications. The unit offers high bandwidth capacity to accommodate signals without degradation of clarity or color fidelity. The chassis has been optimized to maximize functionality while minimizing its footprint and the space it occupies in your rack or work area. The unit can be controlled via a set of ASCII commands using its RS-232 or via front-panel pushbuttons. - Multiple Applications
- This matrix switcher is well suited for use in video & control rooms, educational institutions, government offices, and houses of worship, among many other possible settings and applications.
- Matrix Switching
- This unit is designed to provide 4x2 matrix switching of computer video and stereo audio signals.
- Bandwidth
- It features high bandwidth to support signals transport without degradation.
- Footprint
- This unit has been designed to offer a smaller footprint to save space in your work area.
- Control
- It can be controlled via front-panel pushbuttons or RS-232 connectivity.
- Vertical Interval Switching
- This unit offers vertical interval switching.
In the Box FSR PFD-4x2-PC Pathfinder Computer Video & Audio Matrix Switcher Three-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR PFD-4x2-PC Pathfinder Computer Video & Audio Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR 4x2-PC Specs | Video | VIDEO INPUT
Number: 4
Input impedance: 75 Ohms for R, G, and B inputs (pins 1, 2, and 3)
Nominal level: 0.7V p-p
Maximum level: 3V p-p with 0V offset
Input return loss: -48dB @ 5MHz, -44dB @ 10MHzVIDEO OUTPUT
Number: 2
Output impedance: 75 Ohms for R, G, and B outputs (pins 1, 2, and 3)
Minimum bandwidth: -3dB @ 375MHz, 0.7V p-p
Typical bandwidth: -3dB @ 410MHz, 0.7V p-p
Flatness: +/-0.5dB 0 to 250MHz
Output offset voltage: +/-10 mV maximum (with input floating)
Gain: unity into 75-Ohm load
Adjacent channel crosstalk: -62dB @ 10MHz, -47dB @ 100MHz
Output return loss: -48dB @ 5MHZ, -42dB @ 10MHz | | Sync | SYNC IN
Frequency range: 0 to 200MHz
Input Impedance: 576 Ohms for H and V inputs (pins 13 and 14)
Polarity: positive or negative
Minimum level: 2.2V
Maximum level: 6VSYNC OUT
Delay: 18nS maximum
Rise/fall time: 2nS maximum
Output impedance: 75 Ohms for H and V outputs (pins 13 and 14)
Polarity: same as input (non-inverting)
Level: 4.5V min into Hi-Z, 2.2V min into 75 Ohms
NOTE: RGB switching is performed during vertical blanking interval of the old source for the cleanest possible switch | | Power | 100 to 240VAC, 50/60Hz, 25VA | | Dimensions (HxWxD) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 10.85 lb | | Box Dimensions (LxWxH) | 22.0 x 15.0 x 5.6" |
