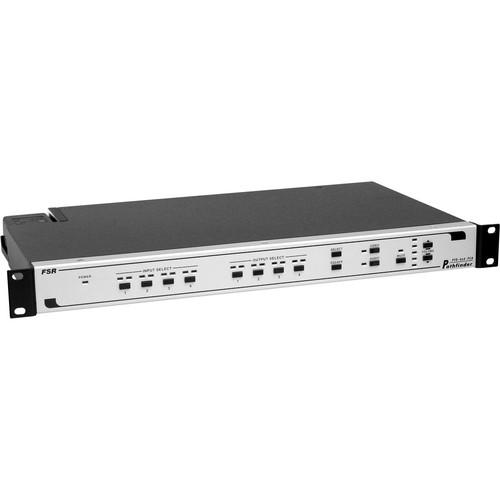

User Manual for FSR PFD-4x4-PCA Pathfinder Computer Video & Audio Matrix Switcher Click to enlarge the picture
Contents of the user manual for the FSR PFD-4x4-PCA Pathfinder Computer Video &
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
|
User manual for the FSR PFD-4x4-PCA Pathfinder Computer Video & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The PFD-4x4-PCA Pathfinder Computer Video & Audio Matrix Switcher from FSR is designed to offer 4 inputs and 4 outputs of matrix switching capability for computer video and stereo audio signals. Audio can be configured for follow or breakaway mode to allow separate video and audio source routing. It is well suited for use in video & control rooms, educational institutions, government offices, and houses of worship, among many other possible settings and applications. The unit offers high bandwidth capacity to accommodate signals without degradation of clarity or color fidelity. The chassis has been optimized to maximize functionality while minimizing its footprint and the space it occupies in your rack or work area. The unit can be controlled via a set of ASCII commands using its RS-232 or via front-panel pushbuttons. - Multiple Applications
- This matrix switcher is well suited for use in video & control rooms, educational institutions, government offices, and houses of worship, among many other possible settings and applications.
- Matrix Switching
- This unit is designed to provide 4x4 matrix switching of computer video and stereo audio signals.
- Audio
- Stereo audio support provides balanced and unbalanced stereo audio switching with independent input trim control and output volume control.
- Bandwidth
- It features high bandwidth to support signals transport without degradation.
- Footprint
- This unit has been designed to offer a smaller footprint to save space in your work area.
- Control
- It can be controlled via front-panel pushbuttons or RS-232 connectivity.
- Vertical Interval Switching
- This unit offers vertical interval switching.
In the Box FSR PFD-4x4-PCA Pathfinder Computer Video & Audio Matrix Switcher Three-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR PFD-4x4-PCA Pathfinder Computer Video & Audio Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR 4x4-PCA Specs | Video | VIDEO INPUT
Number: 4
Input impedance: 75 Ohms for R, G, and B inputs (pins 1, 2, and 3)
Nominal level: 0.7V p-p
Maximum level: 3V p-p with 0V offset
Input return loss: -48dB @ 5MHz, -44dB @ 10MHzVIDEO OUTPUT
Number: 4
Output impedance: 75 Ohms for R, G, and B outputs (pins 1, 2, and 3)
Minimum bandwidth: -3dB @ 375MHz, 0.7V p-p
Typical bandwidth: -3dB @ 410MHz, 0.7V p-p
Flatness: +/-0.5dB 0 to 250MHz
Output offset voltage: +/-10 mV maximum (with input floating)
Gain: unity into 75-Ohm load
Adjacent channel crosstalk: -62dB @ 10MHz, -47dB @ 100MHz
Output return loss: -48dB @ 5MHZ, -42dB @ 10MHz | | Audio | AUDIO INPUT
Number: 4
Input trim range: +15 to -5dB in 1dB steps
Max input level: +7dBmAUDIO OUTPUT
Number: 4
Gain: 6dB
Output level control range: +5 to -45dB in 1dB steps plus mute
Mute attenuation: >95dB @ 2 KHz
Max output level: +12dBm into 600 ohm balanced load
Adjacent channel crosstalk: < -90dB @ 2 KHz
Stereo separation: > 90dB @ 2 KHz
THD + noise: < 0.1% @ 1 KHZ
Frequency response: +/-0.25dB 20Hz to 20KHz -3dB @ 160KHz typical | | Sync | SYNC IN
Frequency range: 0 to 200MHz
Input Impedance: 576 Ohms for H and V inputs (pins 13 and 14)
Polarity: positive or negative
Minimum level: 2.2V
Maximum level: 6VSYNC OUT
Delay: 18nS maximum
Rise/fall time: 2nS maximum
Output impedance: 75 Ohms for H and V outputs (pins 13 and 14)
Polarity: same as input (non-inverting)
Level: 4.5V min into Hi-Z, 2.2V min into 75 Ohms
NOTE: RGB switching is performed during vertical blanking interval of the old source for the cleanest possible switch | | Power | 100 to 240VAC, 50/60Hz, 25VA | | Dimensions (HxWxD) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 10.95 lb | | Box Dimensions (LxWxH) | 21.5 x 15.0 x 5.0" |
