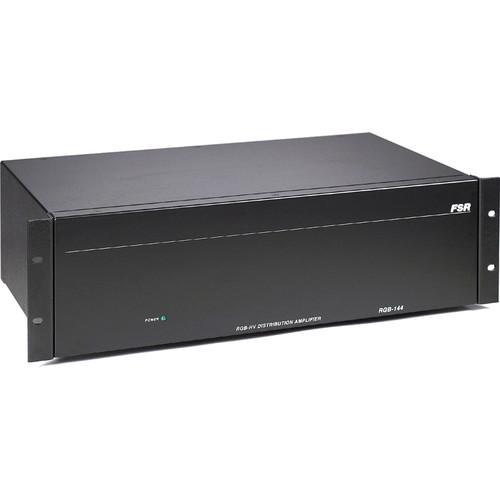

User Manual for FSR RGB-144 1x4x4 RGBHV Distribution Amplifier, Bridgeable, BNC, Rackmountable Click to enlarge the picture
Contents of the user manual for the FSR RGB-144 1x4x4 RGBHV Distribution Amplifier,
- Product category: Distribution Amplifiers (DA's) FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Distribution Amplifiers (DA's)
|
User manual for the FSR RGB-144 1x4x4 RGBHV Distribution Amplifier, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The FSR RGB-144 is an RGBHV distribution amplifier; in it's normal state this unit operates as four separate 1x4 RGBHV DA's, but, by bridging the configuration it can take on a variety of set ups such as 1x16, two separate 1x8 DA's and other bridgeable applications. - Multi-Configuration
- This DA has the ability to configure in a variety of ways such as, four 1x4, one 1x8 and two 1x4, two 1x8, one 1x12 and one 1x4 and one 1x16.
- Multi-Format
- Many formats can be distributed including, RGBHV, RGBS, RGB, YUV, Y/C and composite video can be configured and distributed utilizing BNC connectors.
- Sync
- Both analog sync and TTL level of either polarity can be utilized with this device.
- Universal Power
- Compatibility for power is extended to the world utilizing the universal power supply.
- Rackmountable
- This device was designed to fit into a 3 Rack Unit space.
In the Box FSR RGB-144 1x4x4 RGBHV Distribution Amplifier, Bridgeable, BNC, Rackmountable Power Cord Rack Ears 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR RGB-144 1x4x4 RGBHV Distribution Amplifier, Bridgeable, BNC, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR RGB-144 Specs | Input | RGBHV Video x4, four separate inputs, 1 Vpp @ 75 ohms, on twenty BNC connectors | | Output | RGBHV Video x16, four banks of four outputs, bridgable, 1 Vpp @ 75 ohms, on BNC connectors | | Video Bandwidth | 400 MHz | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Differential Phase | 0.04° | | Differential Gain | 0.04% | | Video Control | Link Switches x3 for bridging configuration | | Coupling | Not Specified by Manufacturer | | Dimensions | Fits into a standard studio rack space 3 Units high | | Weight | Not Specified by Manufacturer | | Power Source | 100 to 220 VAC 50/60 Hz |
