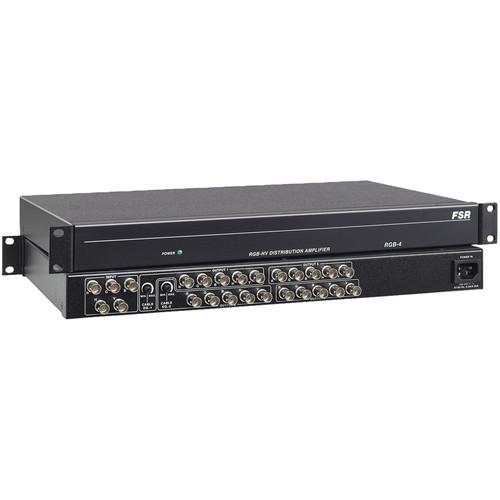

Product description The FSR RGB-4 is a 1x4 RGBHV Distribution Amplifier; it is compatible with all RGB-HV and HDTV standards. It features cable EQ for the first two outputs and the ability to adapt to a variety of analog video formats. - Bandwidth
- A bandwidth exceding 400 MHz allows signal passage of high resolution RGBHV and HDTV signals.
- Cable EQ
- Cable EQ for channels one and two are offered for long cable runs.
- Rackmountable
- This device was designed to fit into one rack unit of standard studio space.
In the Box FSR RGB-4 1x4 RGBHV Distribution Amplifier, HDTV, Cable EQ, Rackmountable Power Cord 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR RGB-4 1x4 RGBHV Distribution Amplifier, HDTV, Cable EQ, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR RGB-4 Specs | Input | RGBHV Video, 0.7 Vpp @ 75 ohms, on BNC connectors | | Output | RGBHV Video x4, 0.7 Vpp @ 75 ohms, on BNC connectors | | Video Bandwidth | 400 MHz | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Differential Phase | Not Specified by Manufacturer | | Differential Gain | Not Specified by Manufacturer | | Video Control | Rear Panel:
Cable EQ 1
Cable EQ 2 | | Coupling | Not Specified by Manufacturer | | Dimensions (WxDxH) | Occupies 1 Rack Unit of Space | | Weight | Not Specified by Manufacturer | | Power Source | 115 to 230 VAC @ 50/60 Hz | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 22.0 x 15.0 x 4.7" |
