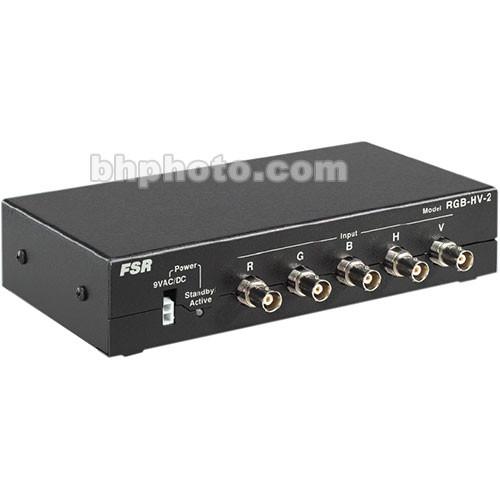

Product description The FSR RGB-HV-2 is a 1x2 high bandwidth, high resolution RGBHV distribution amplifier that supports a variety of component signals. Designed for presentation and broadcast applications this unit offers independent EQ adjustment for the output channels. - Multiple Format Support
- This DA can be used for RGB, RGBS, RGBHV, YUV and UGXA.
- High Bandwidth
- At 590 MHz this unit can pass all high resolution signals flawlessly.
- EQ Adjustment
- Separate EQ adjustments allow the user to output different cable lengths with the same great signal reproduction.
In the Box FSR RGB-HV-2 1x2 RGBHV Distribution Amplifier, BNC, Cable EQ Power Supply 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR RGB-HV-2 1x2 RGBHV Distribution Amplifier, BNC, Cable EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR RGB-HV2 Specs | Input | RGBHV Video, 1 Vpp @ 75 ohms, on five BNC connectors | | Output | RGBHV Video x2, 1 Vpp @ 75 ohms, on ten BNC connectors | | Video Bandwidth | 590 MHz | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Differential Phase | Not Specified by Manufacturer | | Differential Gain | Not Specified by Manufacturer | | Video Control | Separate EQ adjustment for each output | | Coupling | AC | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | Power Source | 9 VDC/VAC @ 500 mA
From an AC Power Adapter | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 12.4 x 10.75 x 3.5" |
