User Manual for FSR RN-410CA 4x1 Composite Video & Audio Switcher Click to enlarge the picture
Contents of the user manual for the FSR RN-410CA 4x1 Composite Video &
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
|
User manual for the FSR RN-410CA 4x1 Composite Video & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

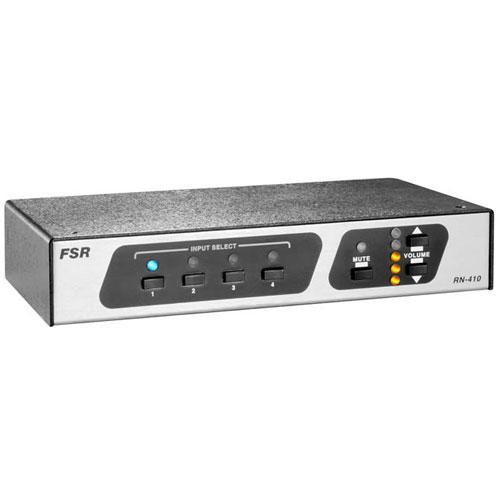

Product description The RN-410CA 4x1 Composite Video & Audio Switcher from FSR is a switcher that belongs to the Room Navigator Series of products. This model is designed to switch between up to (4) composite video and audio feeds on a single output device. Use it in classrooms, boardrooms, houses of worship, or rental & staging work, among many other possible applications and work environments. The unit can be controlled via its front-panel pushbuttons or RS-232 connectivity. Its small footprint makes it well suited for desktop use or it can easily be placed in a rack using the included rackmount kit. - 4x1 Composite Video & Audio Switching
- Use this unit to selectively route between (4) input signals on a single output device.
- Multiple Applications
- This solution is well suited for use in conferences, houses of worship, or boardrooms, among many other possible uses.
- Control
- It can be controlled via its front-panel pushbuttons or RS-232 connectivity.
- Desktop or Rackmount
- This unit is small enough for desktop placement or can be mounted in a rack using the included rackmount kit.
In the Box FSR RN-410CA 4x1 Composite Video & Audio Switcher Switcher Power Supply Rackmount Kit Three-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR RN-410CA 4x1 Composite Video & Audio Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR RN-410 Specs | Video | VIDEO INPUT
Inputs: (4) composite
Connector Type: BNC female
Impedance: 75 Ohms
Level: 1Vp-p
VSWR: <1.3 @ 100MHz
Isolation:
>80dB@10MHz
>63dB@100MHz
Differential Phase: 0.05 degrees
Differential Gain: 0.02% VIDEO OUTPUT
Outputs: (1) composite, BNC female connector
Connector Type: BNC female
Impedance: 75 Ohms
Gain: Unity into 75 Ohms
Offset:
+/-4mV typical
+/-15mV maximum
Bandwidth: 500MHz
Flatness: +/-0.25dB to 100MHz | | Audio | AUDIO
Bandwidth: 20Hz to 20KHz (+/- 0.1dB)
THD + Noise: 0.1% @ 20KHz at rated maximum output
Noise Floor: <-90dBu
Channel Separation: <-85dB @ 1KHz AUDIO INPUT
Inputs: (4) stereo balanced (may be used with unbalanced sources)
Connector Type: 5-pin pluggable screw terminal
Impedance: 20 kOhms balanced
Trim Range: -15dB to +5dB in 1dB steps
Gain Range: -45dB to +5dB in 1dB steps AUDIO OUTPUT
Inputs: (4) stereo balanced (may be used with unbalanced sources)
Connector Type: 5-pin pluggable screw terminal
Impedance: 50 Ohms
Maximum Level: 600 Ohms: +12dBm balanced / +6dBm unbalanced
HI-Z: +14dBm balanced / +8dBm unbalanced | | Controls | RS-232 port
Front-panel pushbuttons | | Power | 9VAC @ 500mA (power supply included) or 12VDC @ 300mA | | Dimensions (HxWxD) | 1.75 x 9.5" (HxW)
Depth not specified by manufacturer | | Weight | 3 lbs (shipping weight) |
