User Manual for FSR RN-410P 4x1 RGBHV Video Switcher Click to enlarge the picture
Contents of the user manual for the FSR RN-410P 4x1 RGBHV Video Switcher
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
|
User manual for the FSR RN-410P 4x1 RGBHV Video Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|

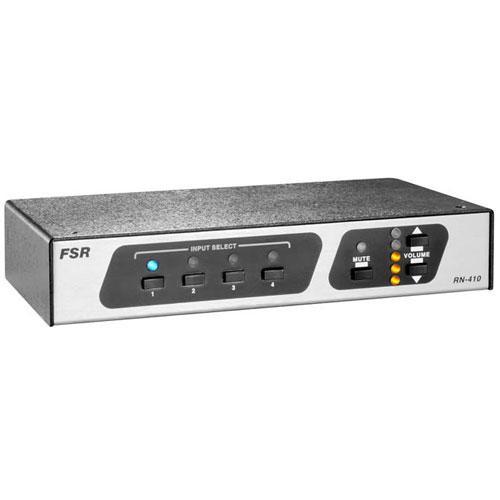

Product description The RN-410P 4x1 RGBHV Video Switcher from FSR is a switcher that belongs to the Room Navigator Series of products. This model is designed to switch between up to (4) RGBHV video feeds on a single output device. Use it in classrooms, boardrooms, houses of worship, or rental & staging work, among many other possible applications and work environments. The unit can be controlled via its front-panel pushbuttons or RS-232 connectivity. Its small footprint makes it well suited for desktop use or it can easily be placed in a rack using the included rackmount kit. - 4x1 RGBHV Video Switching
- Use this unit to selectively route between (4) input signals on a single output device.
- Multiple Applications
- This solution is well suited for use in conferences, houses of worship, or boardrooms, among many other possible uses.
- Control
- It can be controlled via its front-panel pushbuttons or RS-232 connectivity.
- Desktop or Rackmount
- This unit is small enough for desktop placement or can be mounted in a rack using the included rackmount kit.
In the Box FSR RN-410P 4x1 RGBHV Video Switcher Switcher Power Supply Rackmount Kit Three-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR RN-410P 4x1 RGBHV Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR RN-410 Specs | Video | VIDEO INPUT
Inputs: (4) RGB
Connector Type: HD-15 female
Impedance: 75 Ohms
Level: 1Vp-p
VSWR: <1.1 @ 250MHz
Isolation:
>80dB@10MHz
>65dB@100MHz
Differential Phase: not applicable
Differential Gain: not applicable VIDEO OUTPUT
Outputs: (4) RGB
Connector Type: HD-15 female
Impedance: 75 Ohms
Gain: Unity into 75 Ohms
Offset: 15mV maximum
Bandwidth: 450MHz
Flatness:
+/-0.25dB to 150MHz
+/-1dB 150 to 400MHz | | Sync | Input Impedance: 511 Ohms
Output Impedance: 75 Ohms
Input Level TTL: 2.0V minimum
Output Level: 5V into HI-Z / 2.4V into 75 Ohms
Output Rise & Fall Time: 1nS
Propagation Delay: 16nS | | Controls | RS-232 port
Front-panel pushbuttons | | Power | 9VAC @ 500mA (power supply included) or 12VDC @ 300mA | | Dimensions (HxWxD) | 1.75 x 9.5" (HxW)
Depth not specified by manufacturer | | Weight | 3 lbs (shipping weight) |
