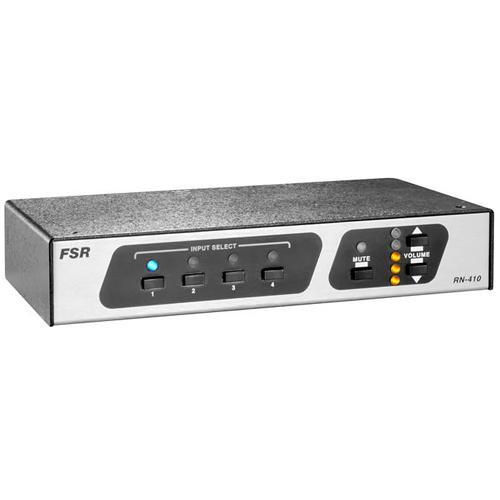

Product description The RN-410SA 4x1 S-Video & Audio Switcher from FSR is a switcher that belongs to the Room Navigator Series of products. This model is designed to switch between up to (4) S-video and audio feeds on a single output device. Use it in classrooms, boardrooms, houses of worship, or rental & staging work, among many other possible applications and work environments. The unit can be controlled via its front-panel pushbuttons or RS-232 connectivity. Its small footprint makes it well suited for desktop use or it can easily be placed in a rack using the included rackmount kit. - 4x1 S-Video & Audio Switching
- Use this unit to selectively route between (4) input signals on a single output device.
- Multiple Applications
- This solution is well suited for use in conferences, houses of worship, or boardrooms, among many other possible uses.

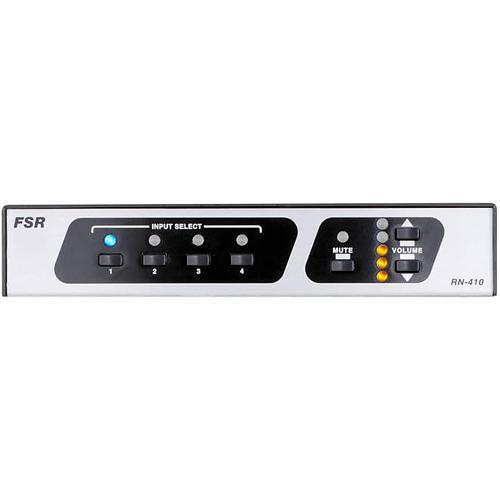

- Control
- It can be controlled via its front-panel pushbuttons or RS-232 connectivity.
- Desktop or Rackmount
- This unit is small enough for desktop placement or can be mounted in a rack using the included rackmount kit.
In the Box FSR RN-410SA 4x1 S-Video & Audio Switcher Switcher Power Supply Rackmount Kit Three-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR RN-410SA 4x1 S-Video & Audio Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

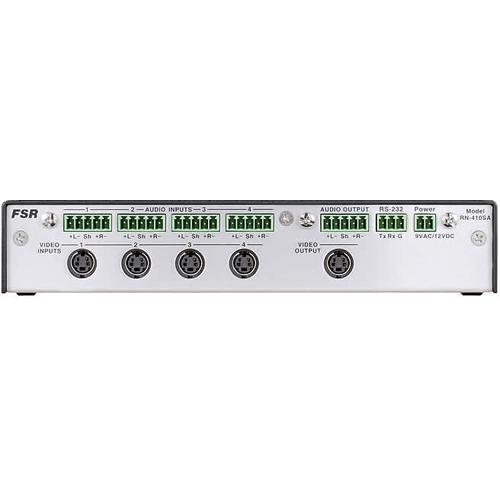

Technical parametersFSR RN-410 Specs | Video | VIDEO INPUT
Inputs: (4) S-video
Connector Type:4-pin female DIN
Impedance: 75 Ohms
Level: 1Vp-p
VSWR: <1.3 @ 100MHz
Isolation:
>80dB@10MHz
>63dB@100MHz
Differential Phase:0.05 degrees
Differential Gain:0.02% VIDEO OUTPUT
Outputs: (4) S-video
Connector Type: 4-pin female DIN
Impedance: 75 Ohms
Gain: Unity into 75 Ohms
Offset:
15mV maximum
+/-4mV typical
Bandwidth: 500MHz
Flatness:
| | Audio | AUDIO
Bandwidth: 20Hz to 20 KHz (+/- 0.1dB)
THD + Noise: 0.1% @ 20KHz at rated maximum output
Noise Floor: <-90dBu
Channel Separation: <-85dB @ 1KHz AUDIO INPUT
Inputs: (4) stereo balanced (may be used with unbalanced sources)
Connector Type: 5-pin pluggable screw terminal
Impedance: 20 kOhms balanced
Trim Range: -15dB to +5dB in 1dB steps
Gain Range: -45dB to +5dB in 1dB steps AUDIO OUTPUT
Inputs: (4) stereo balanced (may be used with unbalanced sources)
Connector Type: 5-pin pluggable screw terminal
Impedance: 50 Ohms
Maximum Level: 600 Ohms: +12dBm balanced / +6dBm unbalanced
HI-Z: +14dBm balanced / +8dBm unbalanced | | Controls | RS-232 port
Front-panel pushbuttons | | Power | Power:9VAC @ 500mA (power supply included) or 12VDC @ 300mA
Connector Type: 2-pin pluggable screw terminals | | Dimensions (HxWxD) | 1.75 x 9.5" (HxW)
Depth not specified by manufacturer | | Weight | 3 lbs (shipping weight) |
