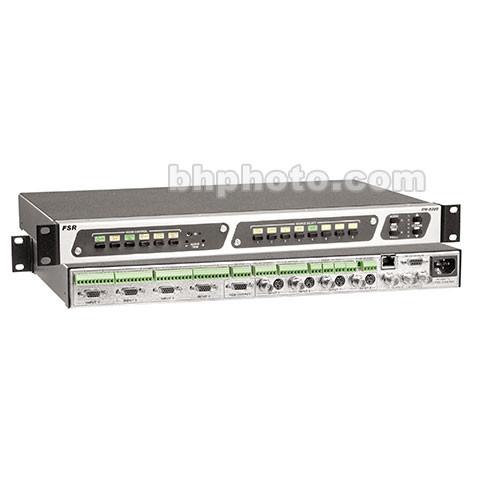

Product description The RN-8200 Room Navigator System Switcher & Controller from FSR is a multi-video format A/V switcher and control system. This solution is ideal for use in classrooms, boardrooms, conference rooms, and multimedia environments, among many other potential uses.
This unit in reality contains several switching units in one box. It has (3) video switchers: a 4x1 RGBHV switch, an 8x1 Composite video switch, and an 8x1 S-Video switch. Inputs 1 through 4 can be Composite Video, S-Video, or Computer video. Inputs 5 through 8 can be used simultaneously for Composite Video and S-video. There is also an 8x1 stereo audio switcher that supports balanced or unbalanced audio. The (8) audio inputs can be assigned to any of the (12) video inputs.
This unit also features a configurable control system with (4) serial ports, (4) IR ports with a learner, and (4) dry contact closures. These control points can be used to manage sources, such as DVD players, VCRs, set-top boxes, projectors, or any other appropriate display device. This unit can be further customized and enhanced with a variety of add-on accessories, such as a scaler, computer interface, remote-control wall plates, and recessed wall mounting brackets. - Multiple Use A/V Switcher & Controller
- This unit is a multi-video format A/V switcher and control system that is an ideal solution for classrooms, boardrooms, conference rooms, and multimedia environments, among many other potential uses.
- Three Units in One Box
- This unit contains 4x1 RGBHV switch, an 8x1 Composite video switch, and an 8x1 S-Video switch.
- Audio Switch
- There unit features an 8x1 stereo audio switcher that supports balanced or unbalanced audio. The (8) audio inputs can be assigned to any of the (12) video inputs.
- Controls
- This unit also features a configurable control system with (4) serial ports, (4) IR ports with a learner, and (4) dry contact closures.
- Add-On Accessories
- This unit can be further customized and enhanced with a variety of add-on accessories, such as a scaler, computer interface, remote-control wall plates, and recessed wall mounting brackets.
In the Box FSR RN-8200 Room Navigator System Switcher & Controller Switcher & Controller Three-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR RN-8200 Room Navigator System Switcher & Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR RN-8200 Specs | Input | x4 RGBHV Switching
x8 Composite Switching
x8 S-Video Switching
x8 Stereo Audio Switching | | Output | x1 HD-15 Female (RGBHV)
x1 BNC Female (Composite Video)
x1 4 Pin DIN (S-Video) | | Switch Type | A/V signal switcher | | Video Bandwidth | 275 MHz (± 3dB) fully loaded | | Differential Gain | <0.1% | | Differential Phase | <0.1 | | Video Signal-to-Noise Ratio | Not specified by manufacturer | | Audio Bandwidth | Not specified by manufacturer | | Signal to Noise Ratio | Not specified by manufacturer | | Audio THD | Not specified by manufacturer | | Control | Remote Control
Computer Interface: x1 9-Pin D-Sub, RS-232C
Wall Plate Interface: x1 5 Position Pluggable Screw Terminal, RS-485
Network: x1 RJ-45, 10 base T (TCP/IP, SMTP, ARP, DHCP, HTTP, ICMP, Telnet)
Device Control
Serial x4 3-Pin Pluggable Screw Terminal, Serial RS-232C TX, RX GND
IR x4 2-Pin Pluggable Screw Terminal, IR Learner located on front panel
Relay x4 2-Pin Pluggable Screw Terminal, 1A @ +24V | | Power Source | 100 to 220VAC, 50/60Hz, 25W | | Dimensions (WxDxH) | 1-3/4 x 17-1/4 x 9-15/16" | | Weight | 14.5 lbs shipping weight |
