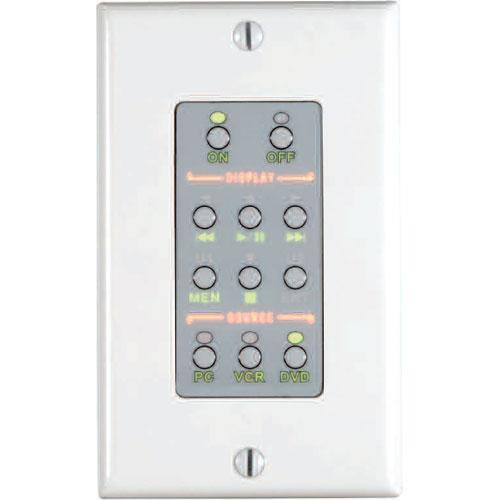

User Manual for FSR RN-WPCS Room Navigator Wall-Plate Control System Click to enlarge the picture
Contents of the user manual for the FSR RN-WPCS Room Navigator Wall-Plate Control
- Product category: Router, Switcher & Patchbay Accessories FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Router, Switcher & Patchbay Accessories
|
User manual for the FSR RN-WPCS Room Navigator Wall-Plate Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The RN-WPCS Room Navigator Wall-Plate Control System from FSR is a mini control system capable of directly controlling (1) serial device, (2) IR devices, or any unit that belongs to the Room Navigator Series of products. The control is housed in a single-gang Decora wall plate that can be installed in either a wall or a desktop. This solution provides not only switching, but also transport and menu navigation control, offering a single point of control and eliminating the need for remote controls. Configurations can be saved as files and shared. It has an illuminated front panel to make it easy to view and control even in low-light conditions. - Control Plate
- This unit can be used to control (1) serial device, (2) IR devices, or any unit that belongs to the Room Navigator Series of products.
- Installation Options
- It can be installed in a wall or desktop.
- Advanced Functions
- Advanced functionality includes: configurable buttons & functions, memory for all settings & commands, and internal storage for application-specific information.
- Illuminated Panel
- The control panel is illuminated, making it easy to use in low-light or dark settings.
In the Box FSR RN-WPCS Room Navigator Wall-Plate Control System Control Plate Three-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR RN-WPCS Room Navigator Wall-Plate Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR RN-WPCS Specs | Interface | (1) 6-pin captive screw connector; POWER, GND (2), IR, RX, TX, IR EMITTER | | Power | 9 to 12VDC @ 0.35A | | Dimensions (HxWxD) | 2.9 x 1.7 x 0.7" | | Weight | 1.6 oz (panel only) 12 oz (approximate shipping weight) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.9 x 5.25 x 3.35" |
