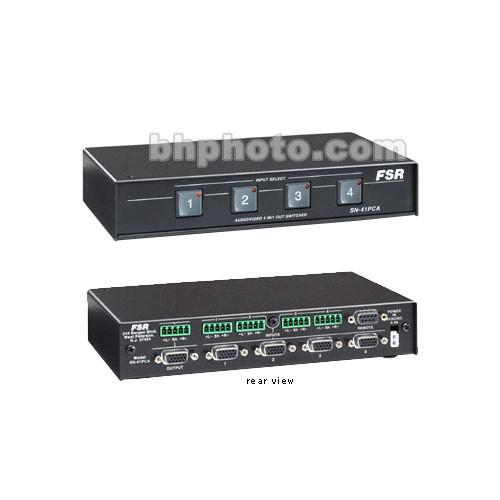

User Manual for FSR SN-4100A 4x1 VGA Switcher with Stereo Audio - HD-15, Screw Terminal Blocks Click to enlarge the picture
Contents of the user manual for the FSR SN-4100A 4x1 VGA Switcher with
- Product category: Routers & Switchers FSR
- Brand: FSR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FSR Routers & Switchers
|
User manual for the FSR SN-4100A 4x1 VGA Switcher with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FSR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FSR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FSR product will considerably shorten its lifespan!
|
Product description The FSR SN-4100A is a 4x1 VGA Video/Balanced Stereo Audio Switcher; it accepts computer generated signals on HD-15 connectors with Balanced Stereo Audio on Terminal Blocks and routes to one output. It features a high bandwidth and rackmount hardware. - Compact Size
- Measuring 8.5" wide this unit will fit into small studio spaces and desktops
- High Bandwidth
- A bandwidth of 350 MHz allows this device to pass high resolution RGBHV video signals.
- Balanced Stereo Audio
- Balanced Stereo audio is switched along with the high resolution video.
- Remote
- Switching can remotely be activated via RS-232.
- Rackmount Kit
- This device comes standard with rackmount hardware.
In the Box FSR SN-4100A 4x1 VGA Switcher with Stereo Audio - HD-15, Screw Terminal Blocks AC Power Adapter Rackmount Kit 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FSR SN-4100A 4x1 VGA Switcher with Stereo Audio - HD-15, Screw Terminal Blocks in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFSR SN-4100A Specs | Input | RGBHV Video x4, 1 Vpp @ 75 ohms, on HD-15 connectors
Balanced Stereo Audio x4, 20K ohms, on terminal blocks
RS-232, on a 9-Pin connector | | Output | RGBHV Video, 1 Vpp @ 75 ohms, on an HD-15 connector
Balanced Stereo Audio, 50 ohms, on a terminal block | | Switch Type | Manual or Remote | | Video Bandwidth | 350 MHz | | Differential Gain | Not Specified by Manufacturer | | Differential Phase | Not Specified by Manufacturer | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Audio Bandwidth | 20 kHz | | Signal to Noise Ratio | 90 dB | | Audio THD | 0.03% | | Control | Front Panel Output Selection
RS-232 | | Power Source | 9 VDC from an AC Adapter | | Dimensions (WxDxH) | 8.5 x 9.5 x 1.75"
21.6 x 24.13 x 4.45cm | | Weight | 4 lbs
1.8 kg | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 20.3 x 11.5 x 2.7" |
